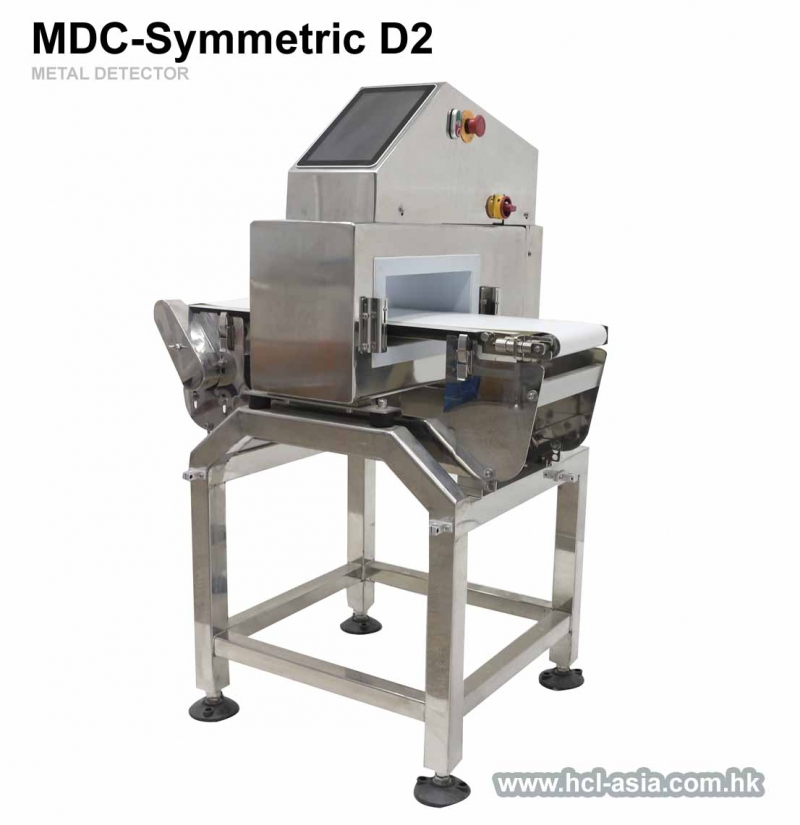

Model: MDC-Symmetric D2
End-of-the-line Metal Detection Systems
Applications: Food industry, chemical industry, pharmaceutical industry, etc.
MDC-Symmetric D2 is a newly launched model in Jan 2022. For MDC-Symmetric D and MDC-Symmetric A, its production has been ceased since Dec 2021.
Features:
- Multi-frequency pre-set. Enhanced detection sensitivity.
- Automatic phase-angle compensation. Improved compatible for product effective.

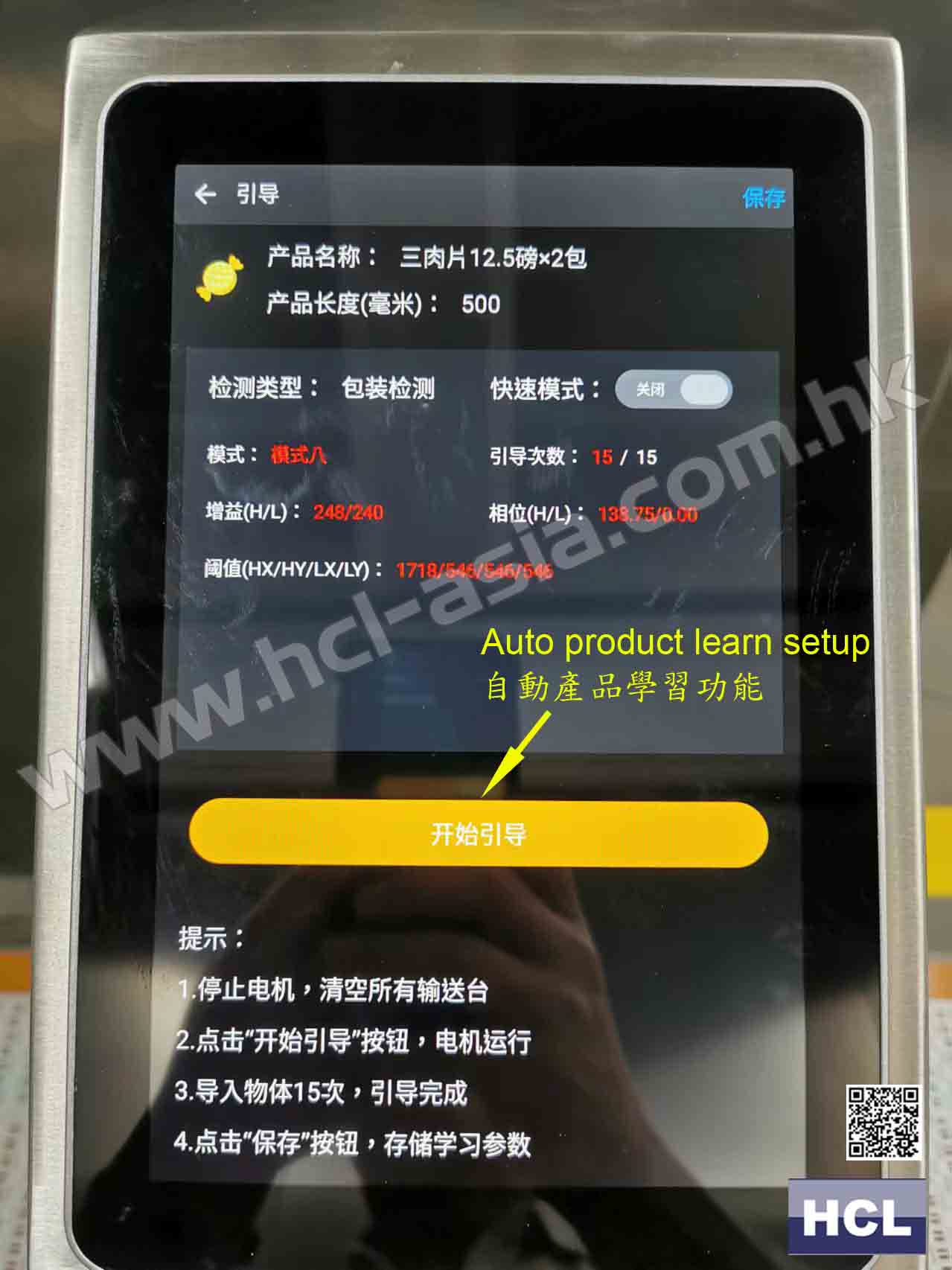

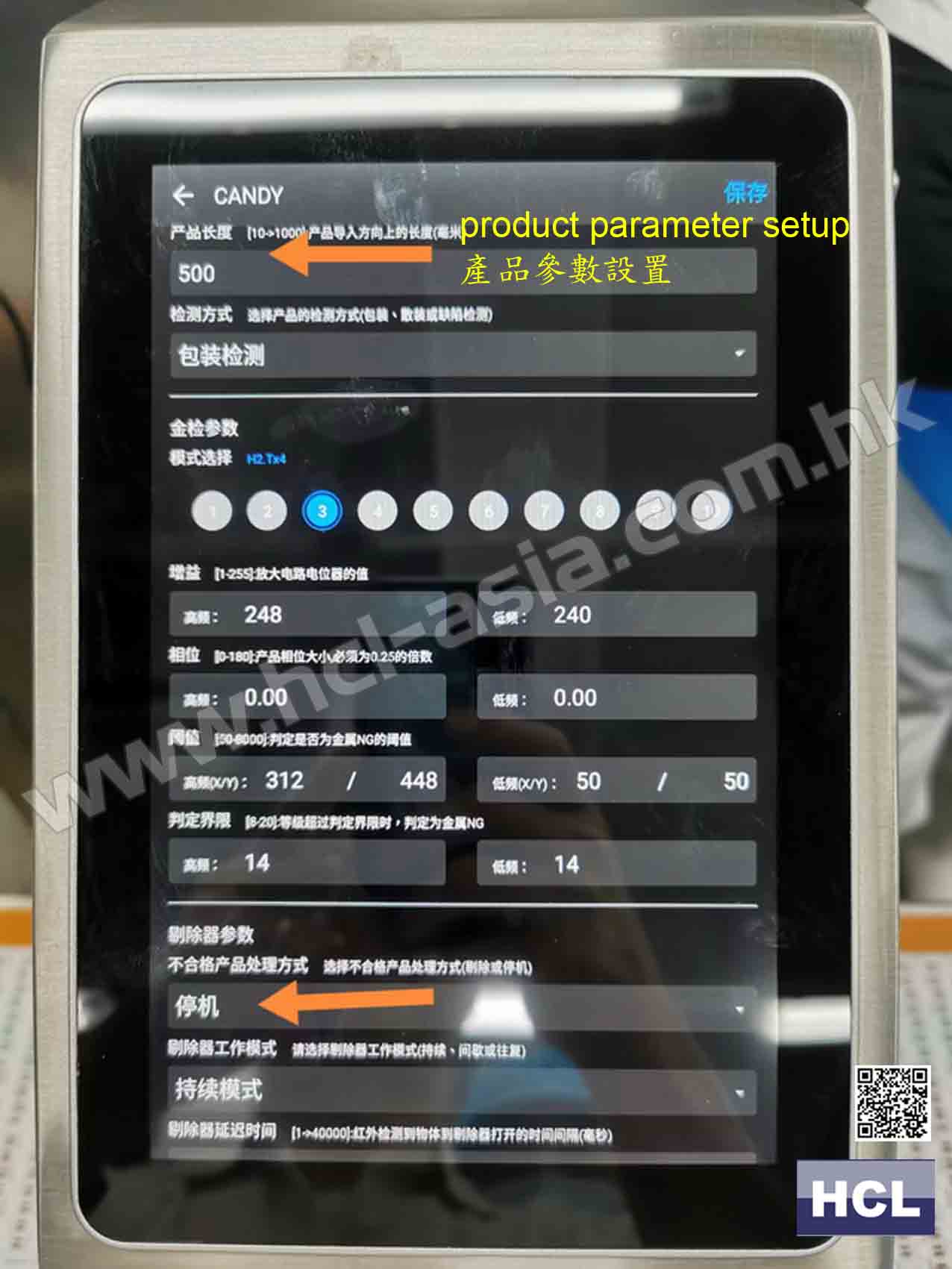

- Simplified product learn procedure. Automatic sensitivity and phase-angle setup.
- Industrial computer with Android system and multi-language operation system.
- 100 product parameters memory
- Real-time flash disk data storage.
- Ethernet connection optional.
- Tool-free fast conveyor belt disassemble and wash.
- Small dimension design. Easy to deploy.
- IP66 optional
Specifications
- Model: MDC-Symmetric D2
- Detection method: Balanced coil
- Belt speed: 25m/min (fixed) or 4-57m/min (adjustable)

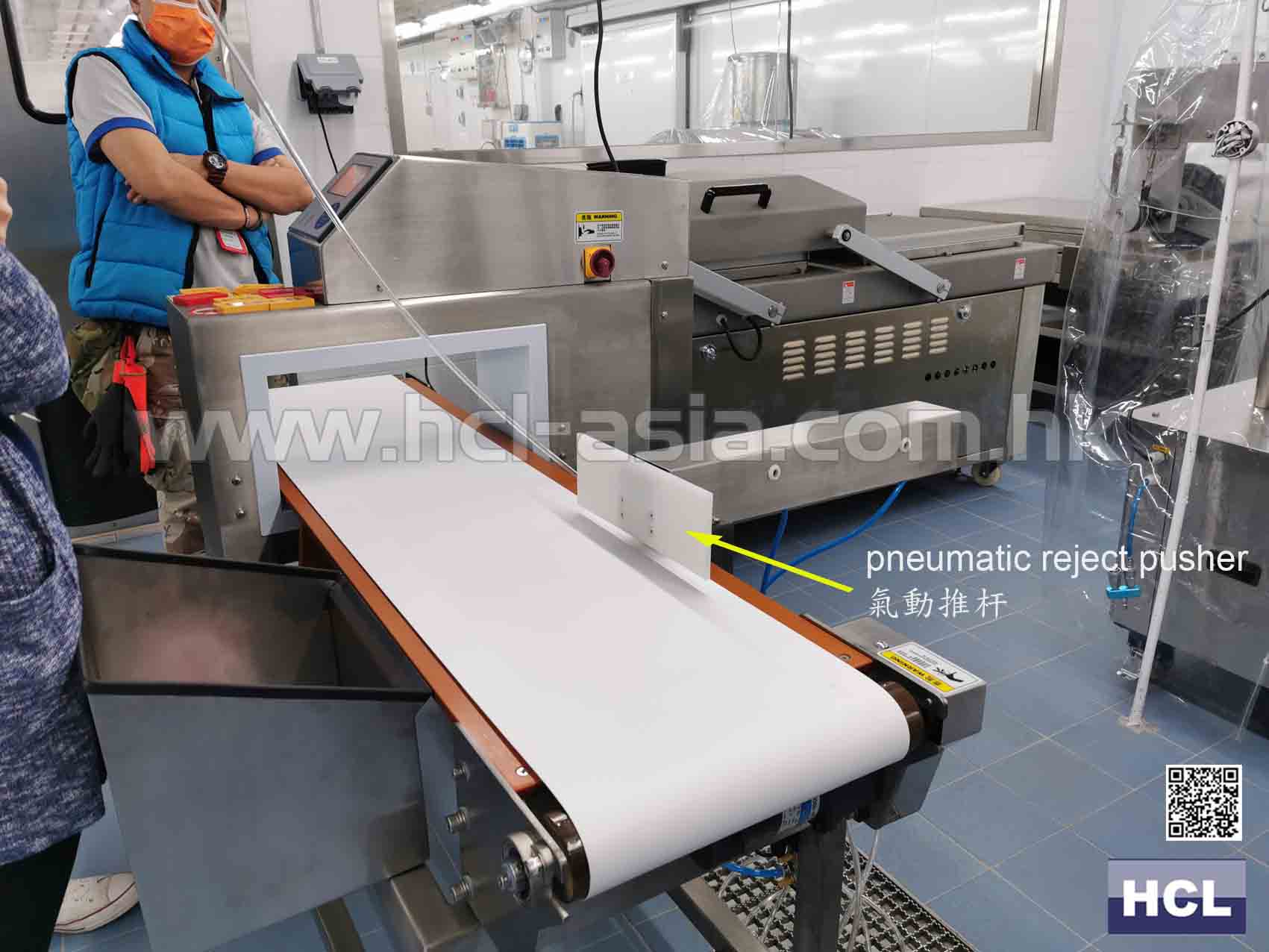

- Reject system (optional): Pneumatic diverter / pneumatic pusher / drop fall

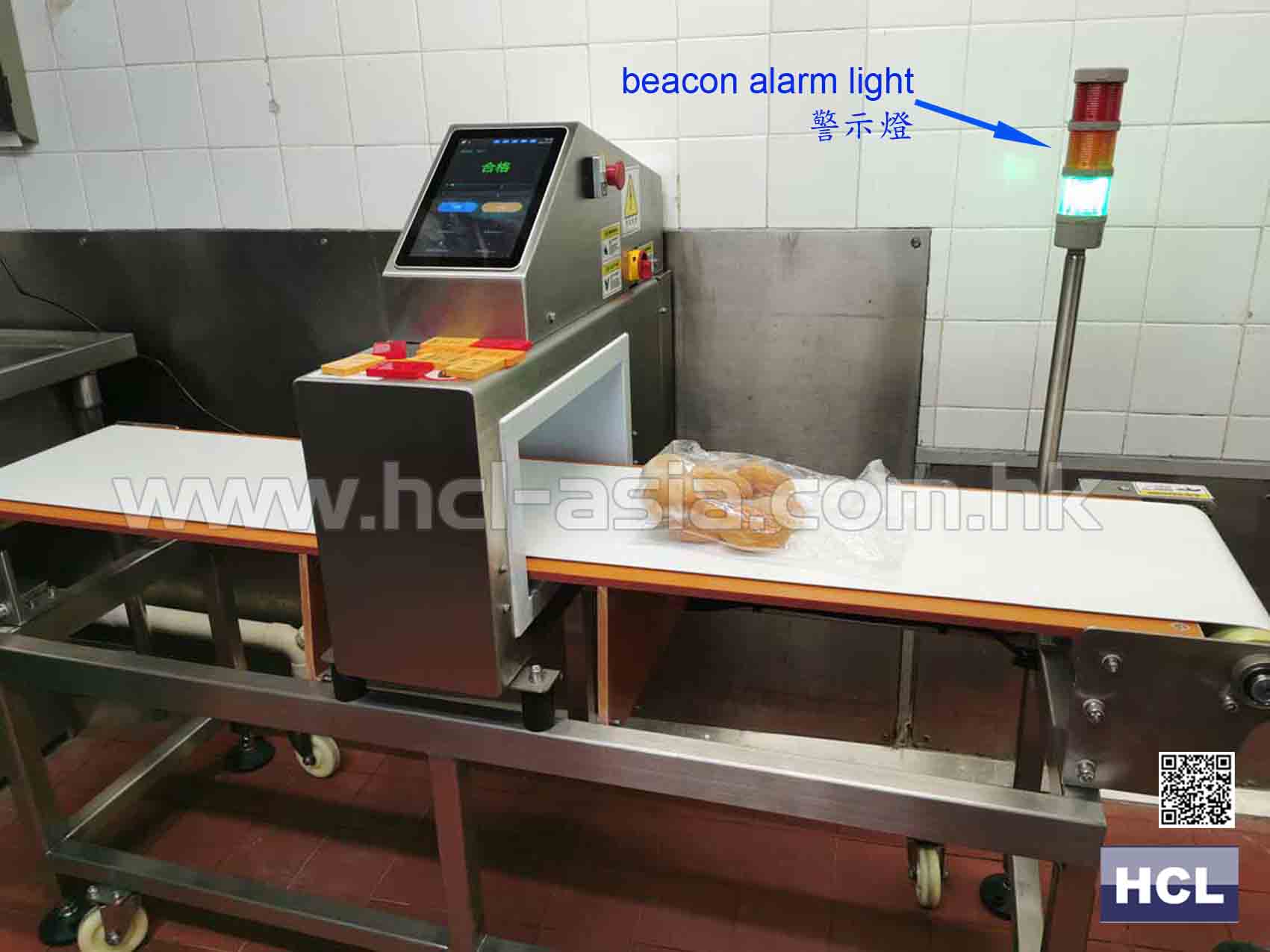

- Alarm: Buzzer

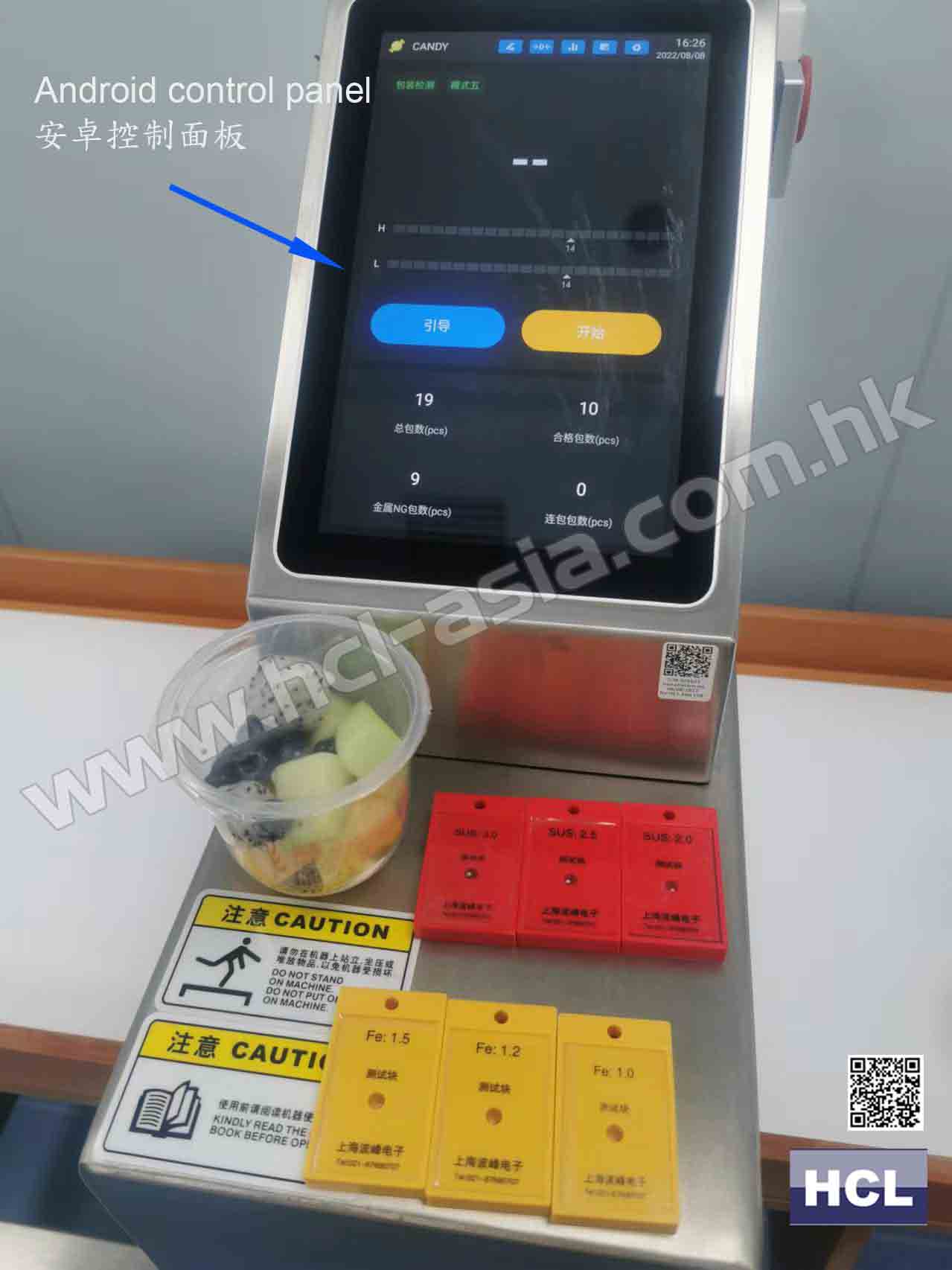

- Android 10" touchscreen user interface, IPS
- Power: Single phase AC 220V 50-60HZ
- Dimension (mm): 1000 L x 810 W x 1250 +/- 50mm H
- Custom machine length (mm): 800 / 1000 / 1200 / 1500 / 1800
- Conveyor height (from floor): 750mm +/- 50mm (can be custom-made)
- Detection head width: 220mm
- Rated Output: Approx. < 300W
Sensitivity
|
Tunnel size (mm)
|
Sensitivity
|
|
400 x 120
|
Fe 0.8mm / Non-Fe 1.2mm / SUS 1.5mm
|
|
400 x 150 *
|
Fe 1.0mm / Non-Fe 1.5mm / SUS 2.0mm
|
|
400 x 200
|
Fe 1.5mm / Non-Fe 2.0mm / SUS 2.5mm
|
|
400 x 250
|
Fe 2.0mm / Non-Fe 2.5mm / SUS 3.0mm
|
Remarks:
- * = standard model

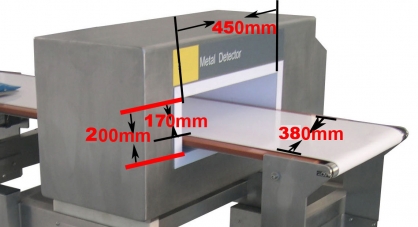

- Effective tunnel height is 30mm lower than the above listed sizes (see above picture)
- Fe = ferrous
- Non-Fe = non ferrous
- SUS = stainless steel 304
- Sensitivity remarks: The above listed sensitivity is based on standard free-space test condition. The final sensitivity performance can differ and is subject to the inherent product signal produced
Existing customers:

# Our company has over 20 years of sales & service expertise and experience in metal detection for food. We know best how to protect food from metal contaminants.
Photo Gallery (Hong Kong Area): (click to view images)
 |
 |
|
 |
| Ramen |
Spices |
Mooncakes |

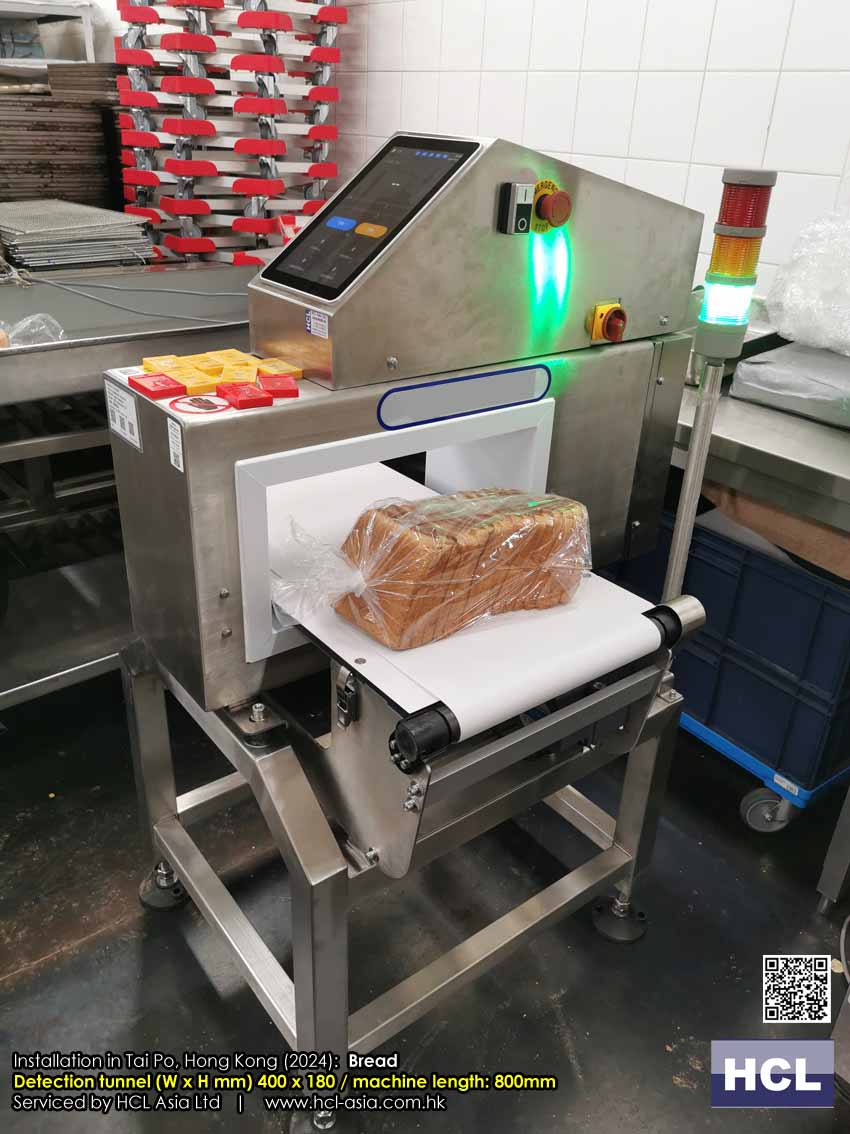

Bread |
 |
 |
 |
 |
| Bread |
Cup Cakes |
Granulated Sugar |

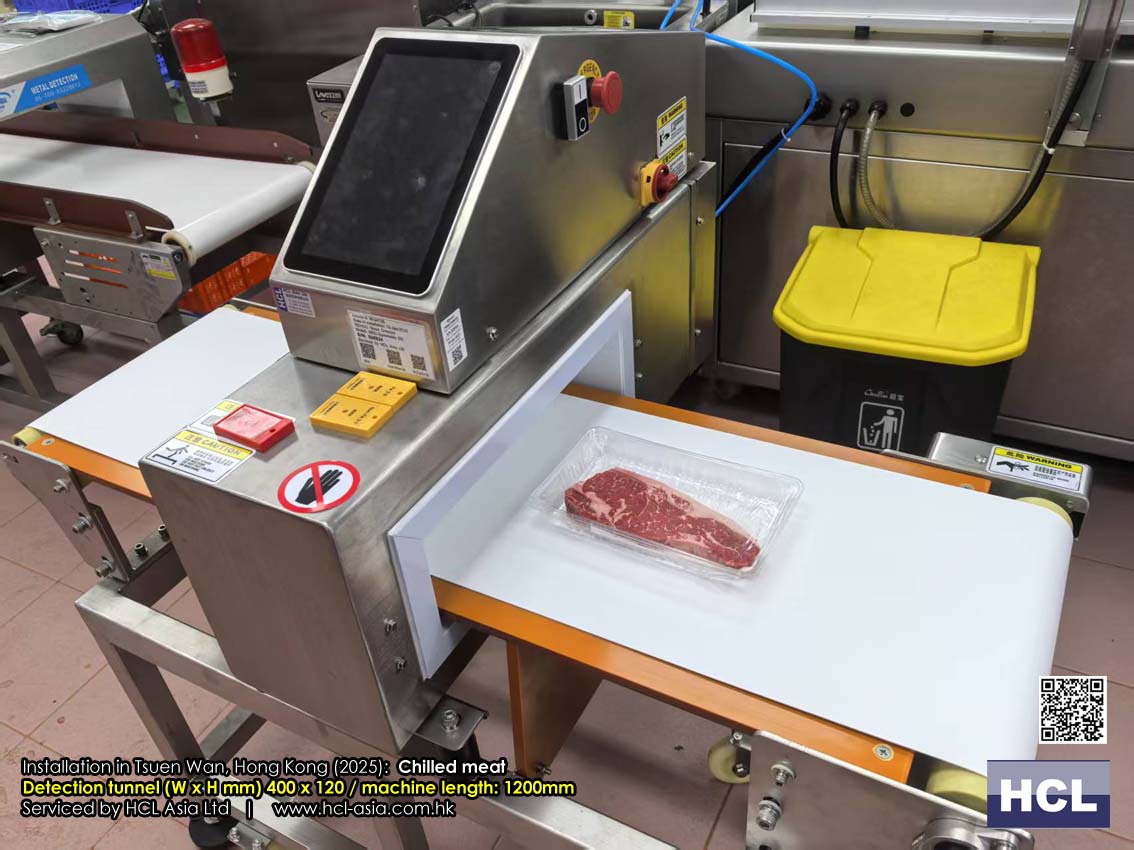

Fresh meat |
 |
 |
 |
 |
| Tofu |
Cup Cakes |
Canteen Lunch Box |
Granulated sugar |
 |
 |
 |
 |

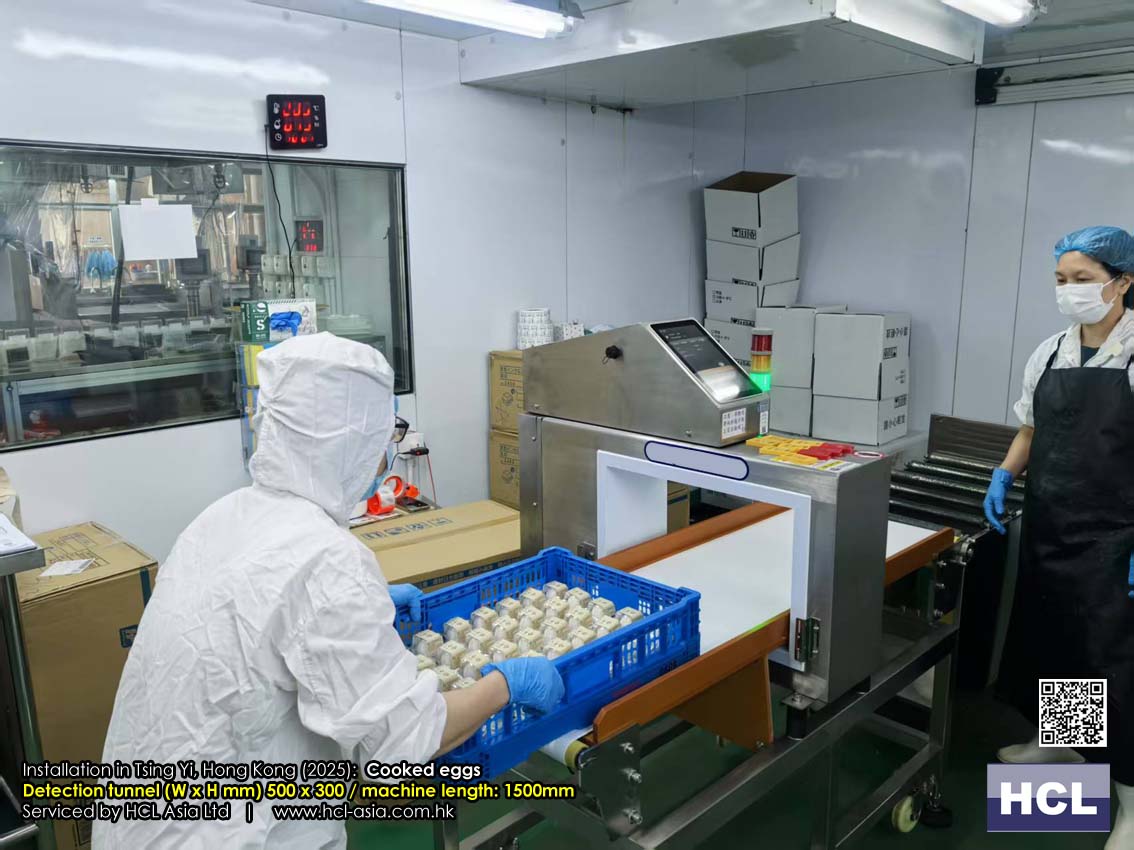

| Pre-cooked eggs |

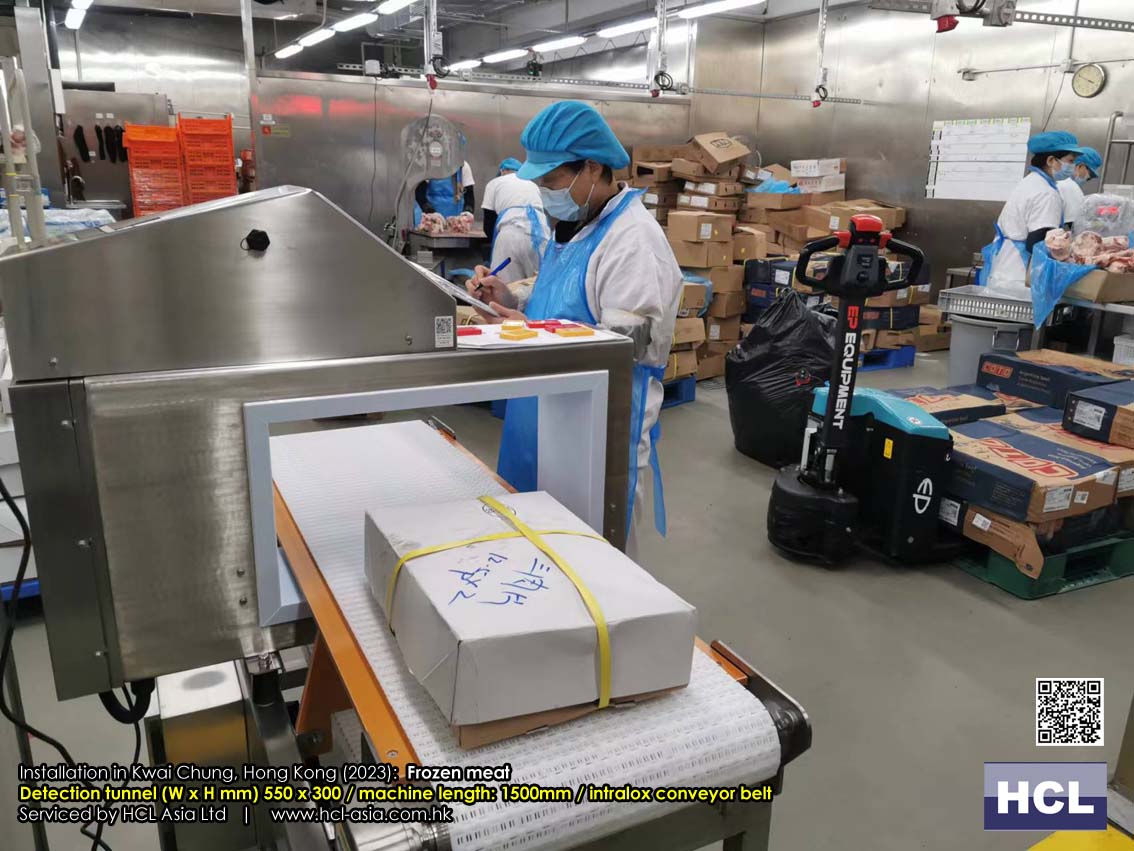

Frozen meat |
Peanuts / snacks |
Sandwiches |
 |
 |
 |
 |
| Western saucery |
Sweets |
Rice cake / Radish cake |

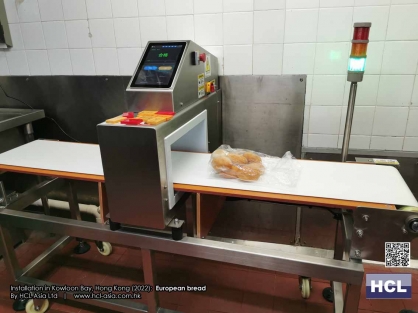

European bread |
 |
 |
 |
 |
| Fermented soybean |
Frozen meat |
Meal balls |
European bread |
 |
 |
 |
 |

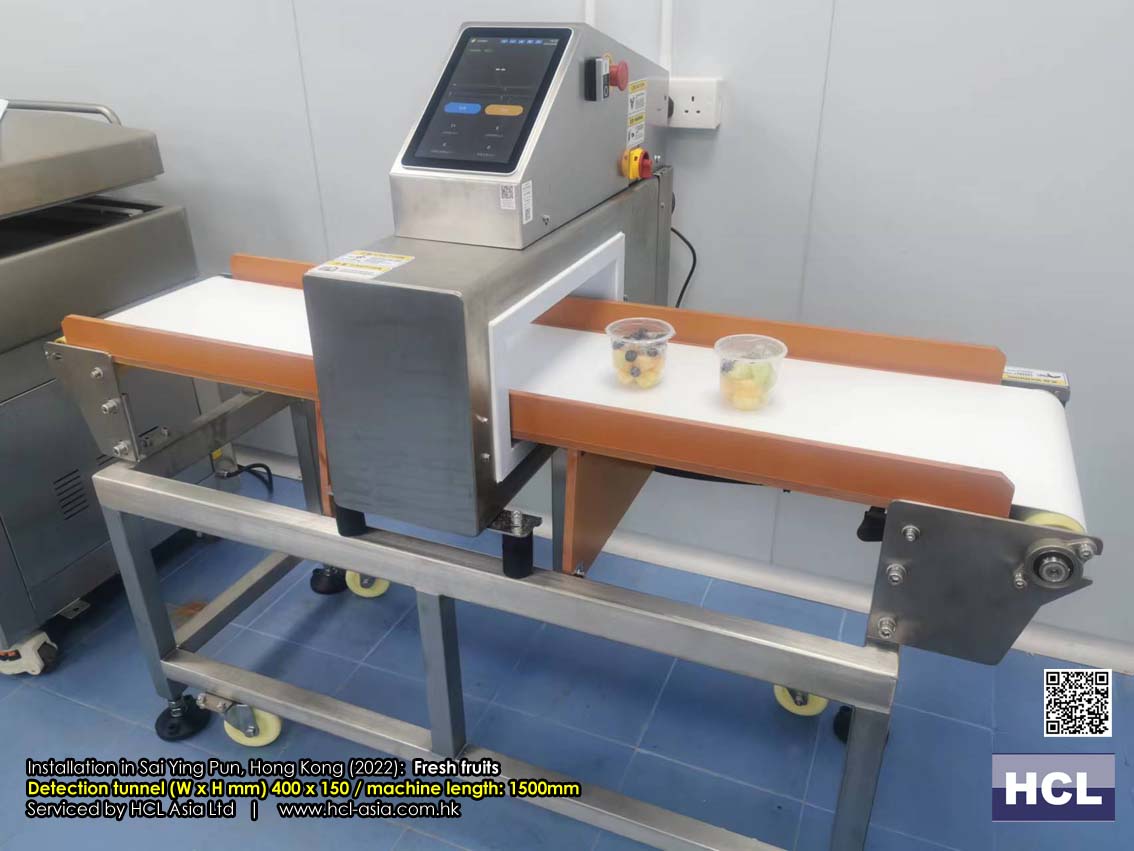

| Fresh fruits |

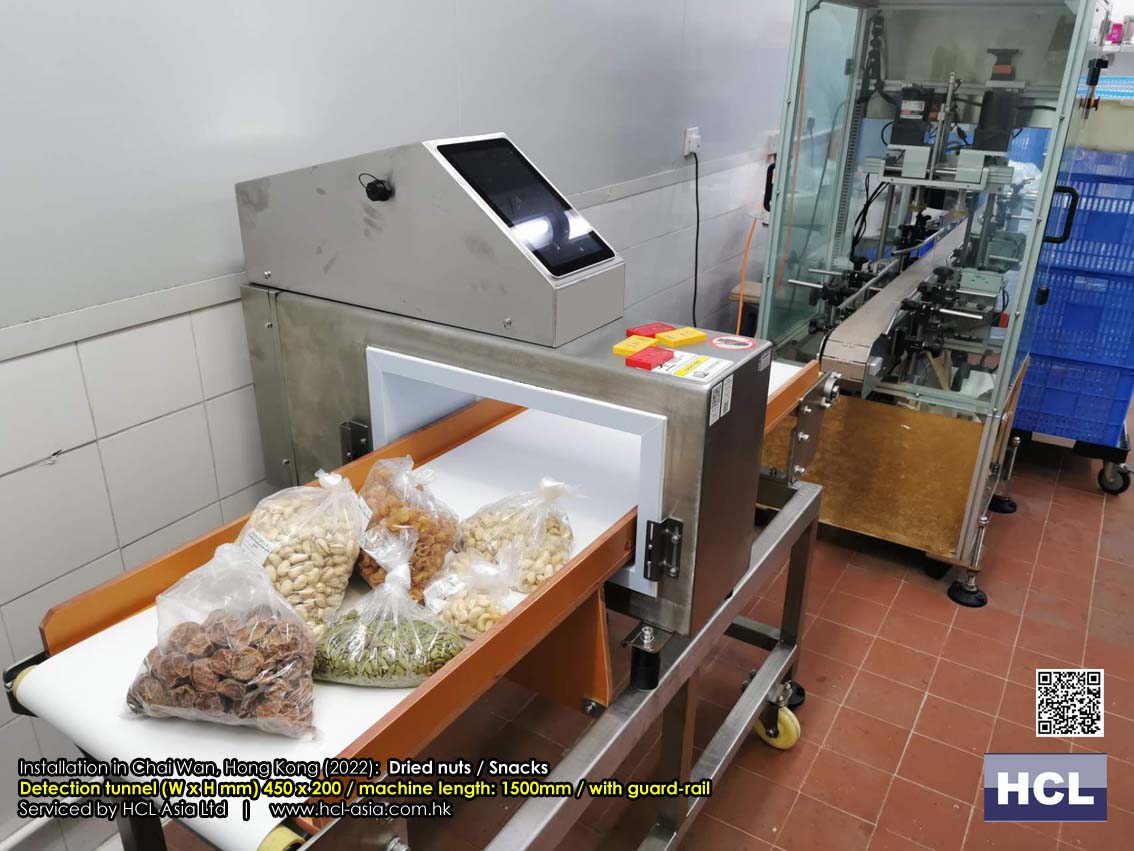

Dried nuts / snacks |

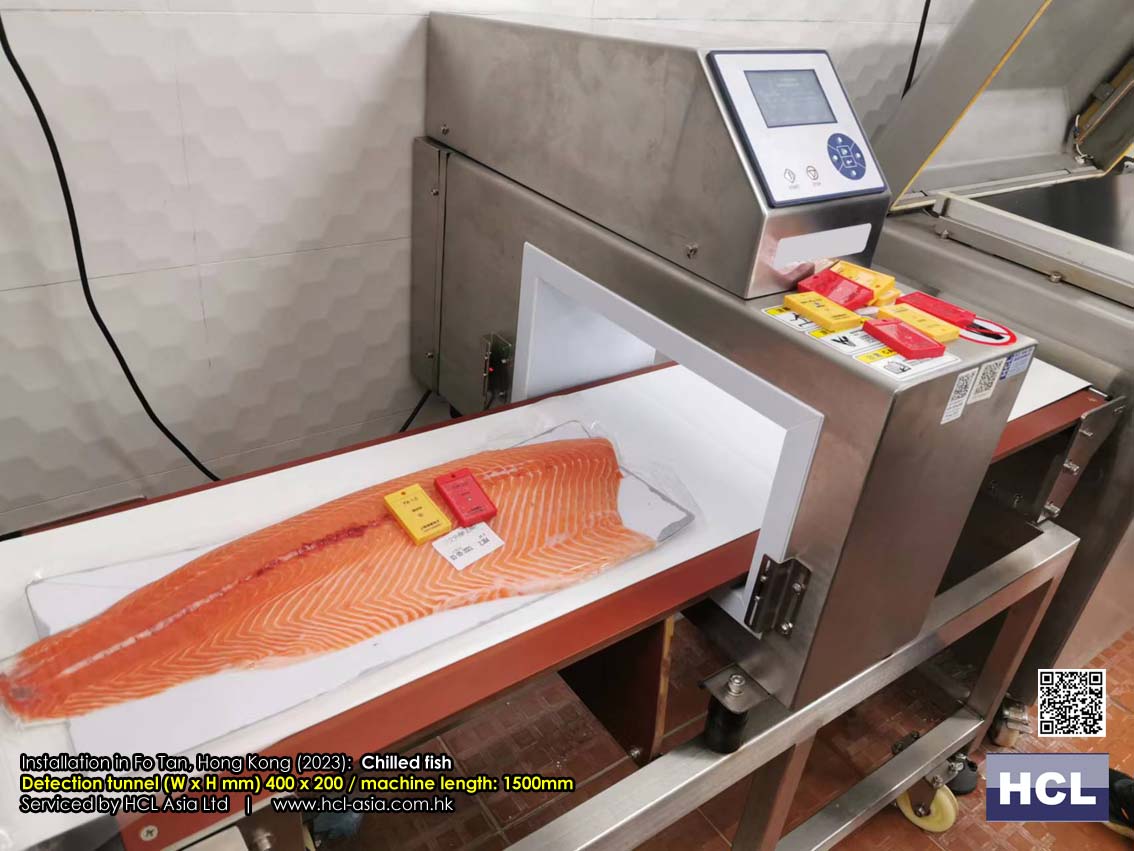

Chilled fish |
Frozen Meat |
 |
 |
 |
|

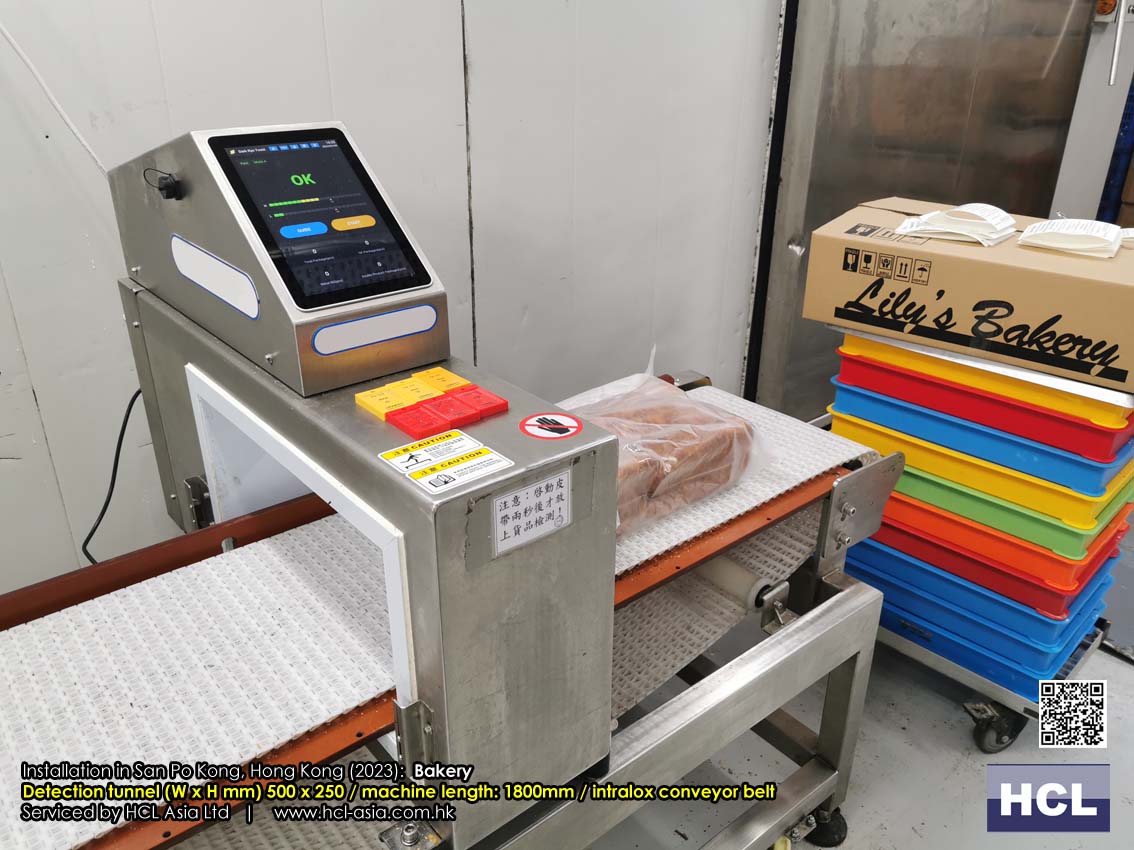

| Bakery |
