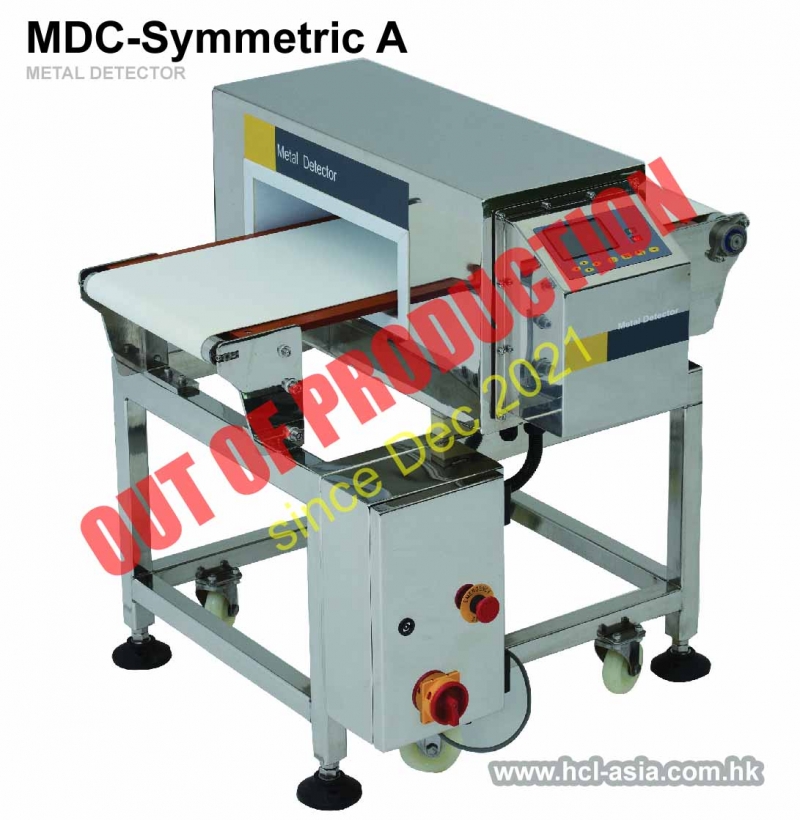

** This model is out of production since Dec 2021**
Model: MDC-Symmetric A
End-of-the-line Metal Detection Systems
Applications: Food industry, chemical industry, pharmaceutical industry, garments industry
Features:
- Suitable for used to difficult detected products , such as high salt, high moisture and high density food
- Could detect dough, stuffed bun and baking foods such cake, bread, biscuit and etc.
- The detection sensitivity of iron and stainless steel could be set separately
- Machine based on high speed 32bit CPU control circuit

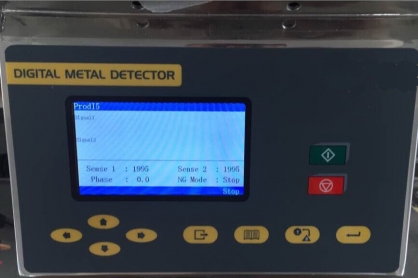

- Large colorful LCD display
- Multi-functional OS and HMI operation
- Chinese or English language interface (either one)
- storing up to 25 product menus
- Full digital signal processing and transferring
- Advanced product effect diagnosis
- Various reject systems are optional
- Newly designed stainless steel machine frame with high protection grade
Specifications
- Model: MDC-Symmetric A
- Detection method: Balanced coil
- Aperture size: 400mm W x 120mm H
- Belt speed: 25m/min (Adjustable)
- Reject system (optional): Pneumatic wing arm/pneumatic arm pusher / drop leaf
- Alarm: Buzzer
- Power: Single phase AC 220V 50-60HZ
- Rated Output: Appr. 90W
- Dimension (mm): 1000 L x 870 W x 970 +/- 50mm H
- Custom machine length (mm): 1000 / 1200 / 1500 / 1800
- Conveyor height (from floor): 750mm +/- 50mm (can be customized)
- Detection head width: 300mm
- Weight: Appr.190kg
Sensitivity
|
Tunnel size (mm)
|
Sensitivity
|
|
400 x 120
|
Fe 1.0mm / Non-Fe 1.5mm / SUS 2.0mm
|
|
400 x 150*
|
Fe 1.2mm / Non-Fe 2.0mm / SUS 2.5mm
|
|
400 x 200
|
Fe 1.5mm / Non-Fe 2.5 Fe / SUS 3.0mm
|
Remarks:
- * = standard model

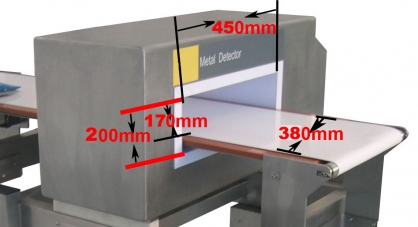

- Effective tunnel height is 30mm lower than the above listed sizes (see above picture)
- Fe = ferrous
- Non-Fe = non-ferrous
- SUS = stainless steel 304
- Sensitivity remarks: The above listed sensitivity is based on standard free-space test condition. The final sensitivity performance can differ and is subject to the inherent product signal produced
Existing customers:

# Our company has over 20 years of sales & service expertise and experience in metal detection for food. We know best how to protect food from metal contaminants.
Photo Gallery (Hong Kong Area): (click to enlarge)
 |
 |
|
.jpg) |

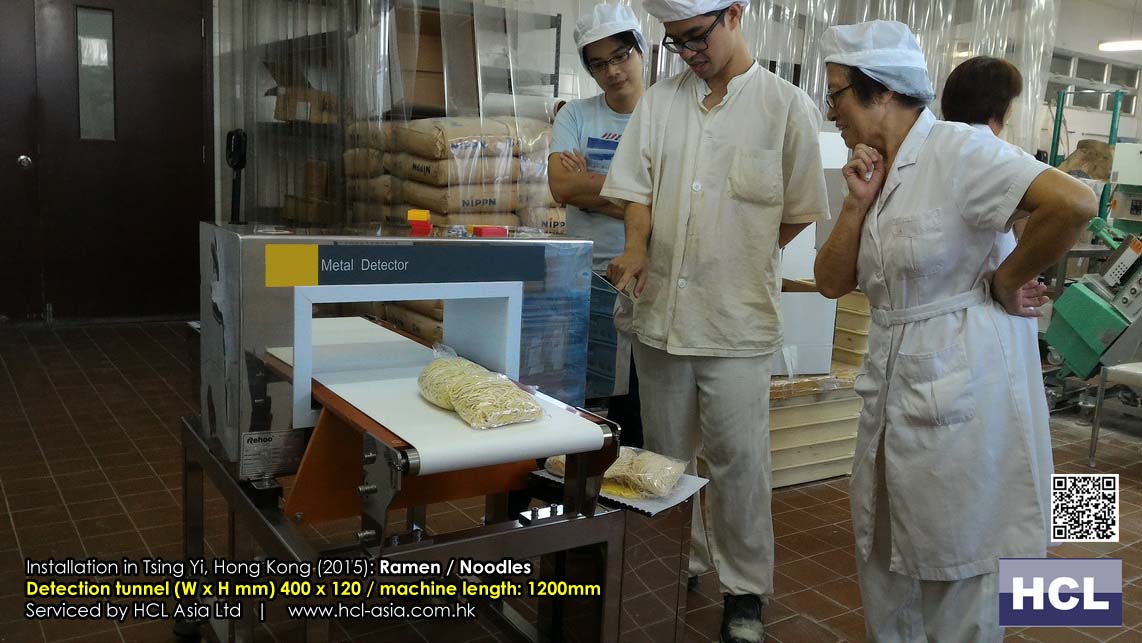

| Ramen |

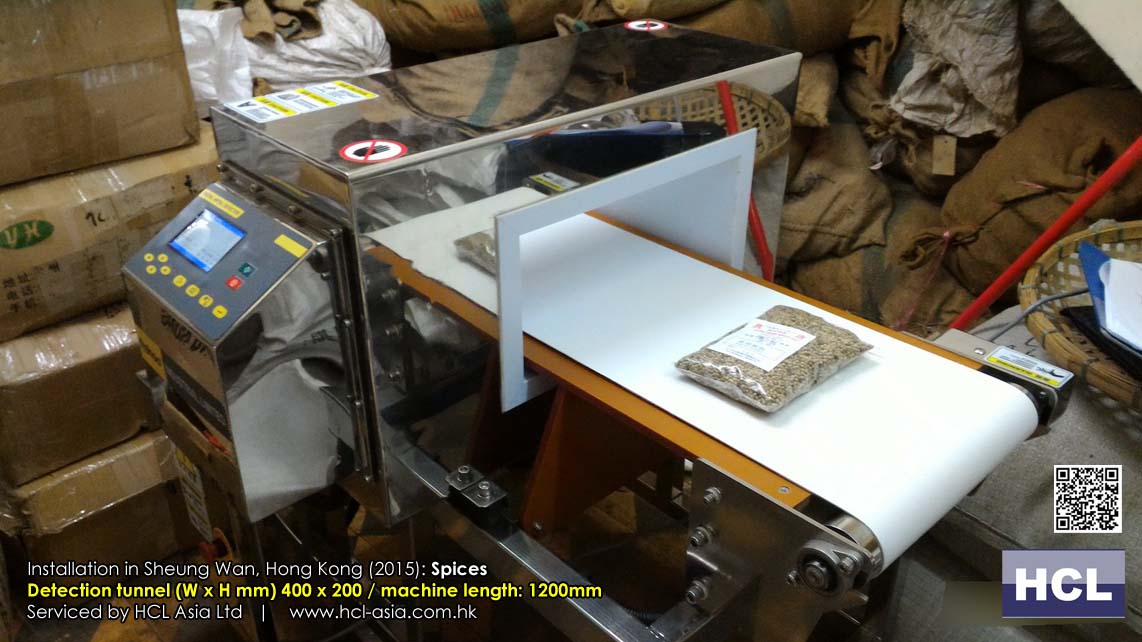

Spices |
Mooncakes |

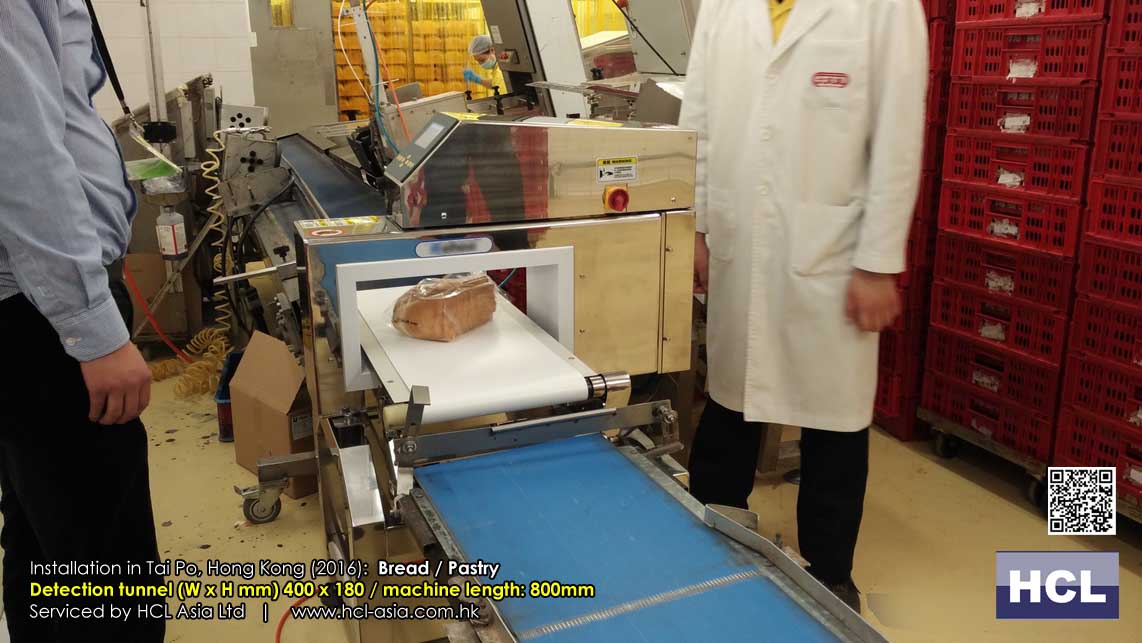

Bread |
 |
 |
 |
 |
| Bread |

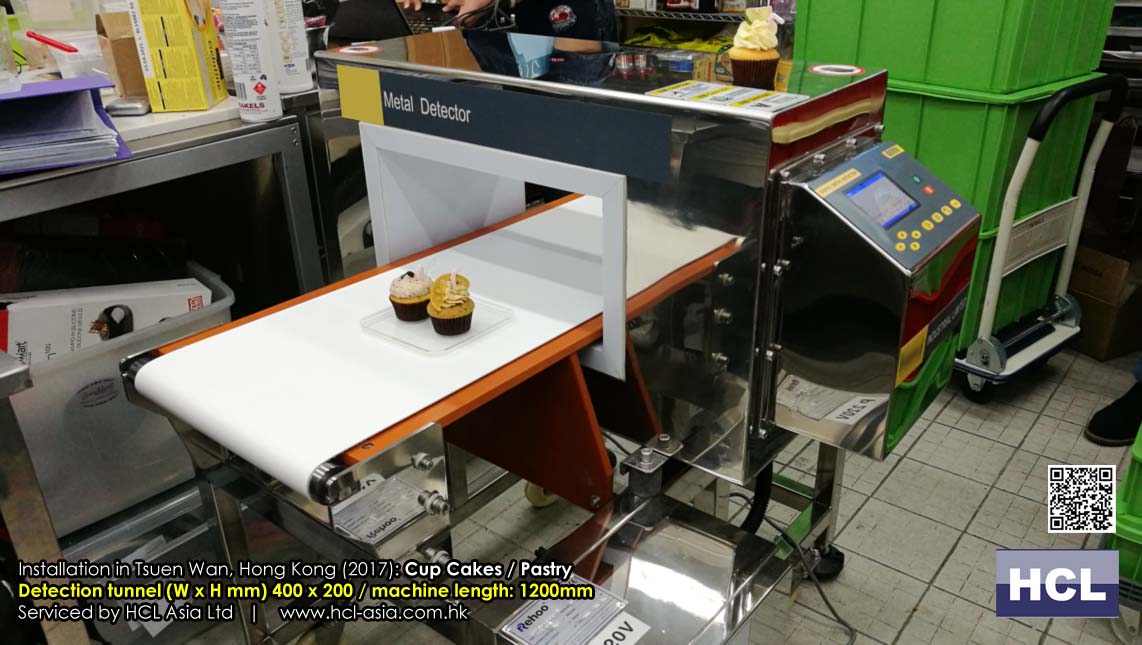

Cup Cakes |

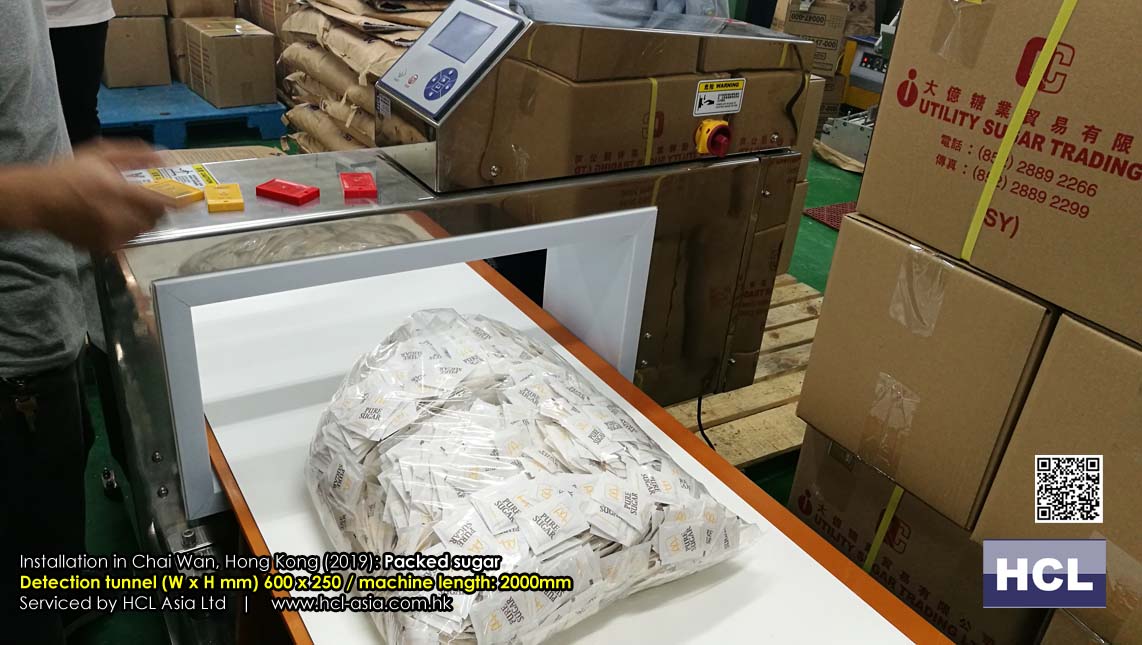

Granulated Sugar |
Fresh meat |
 |
 |
 |
 |

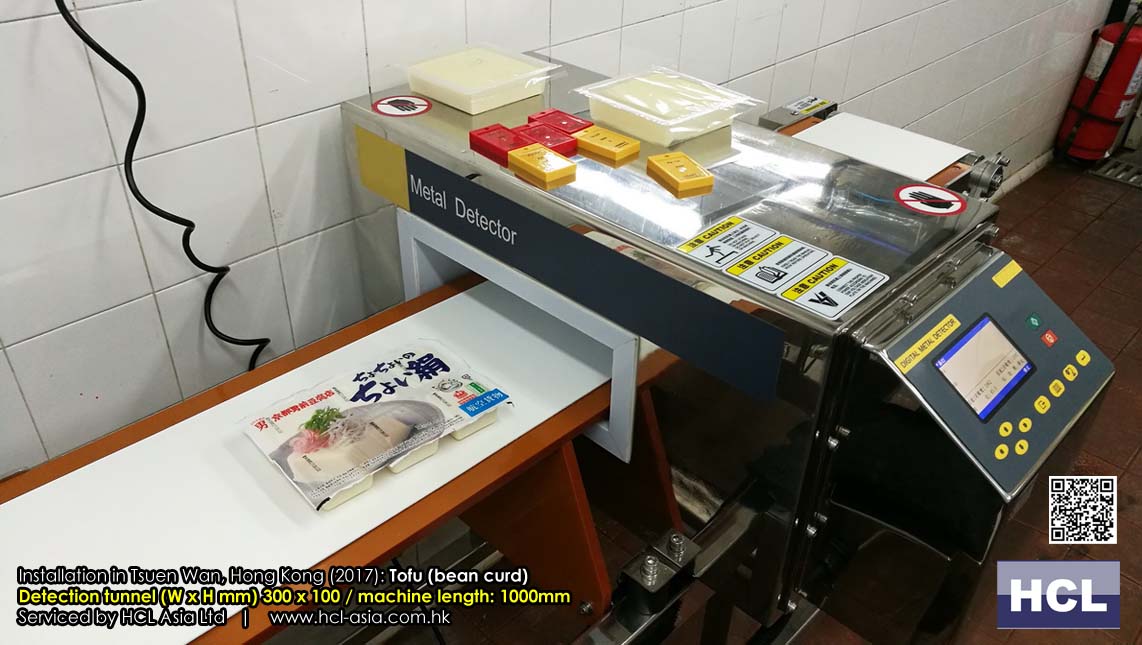

| Tofu |
Cup Cakes |
Canteen Lunch Box |
Granulated sugar |
 |
 |
 |
 |
| Pre-cooked eggs |

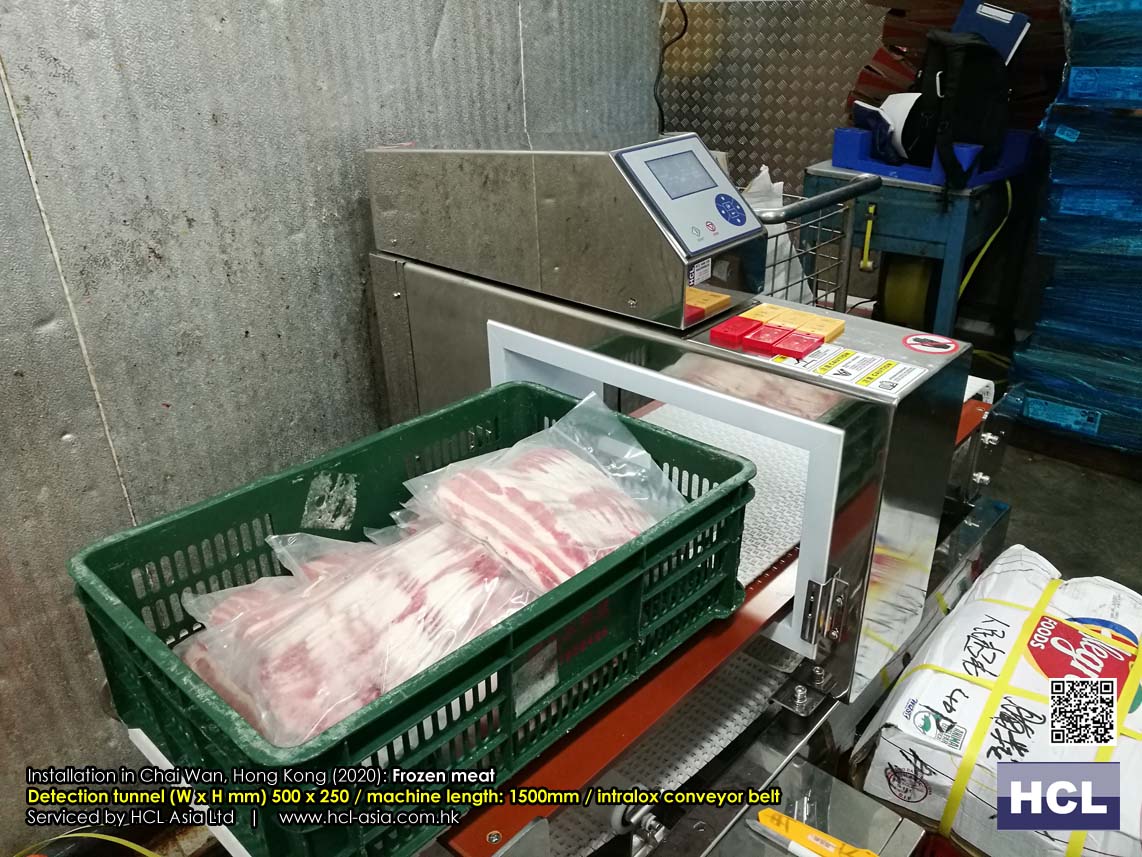

Frozen meat |

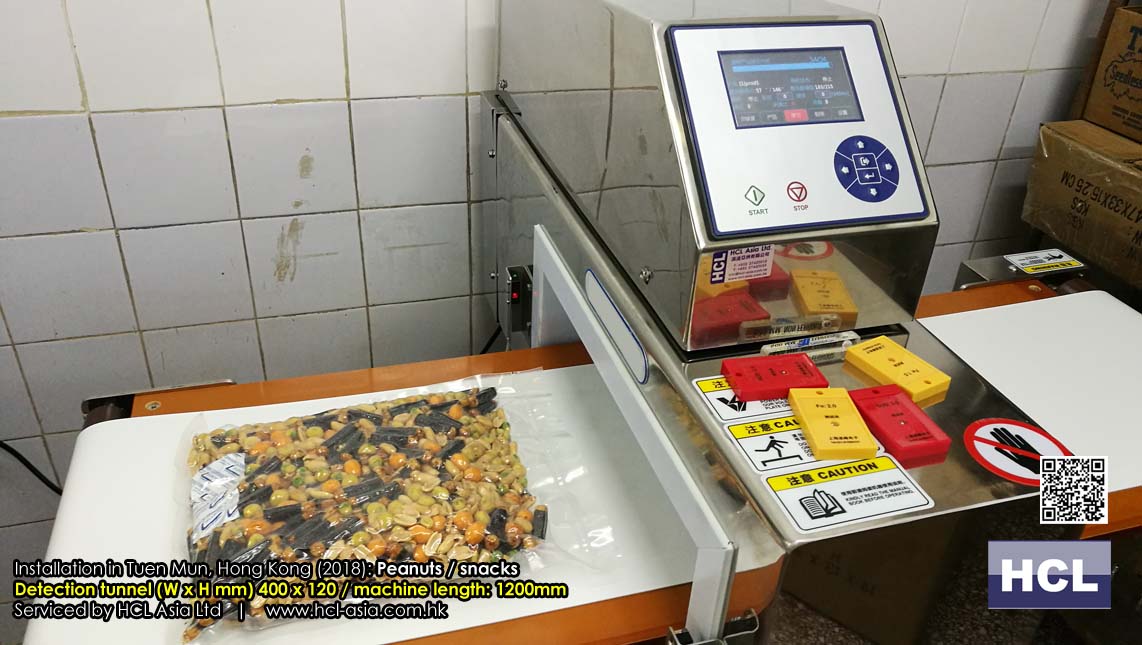

Peanuts / snacks |

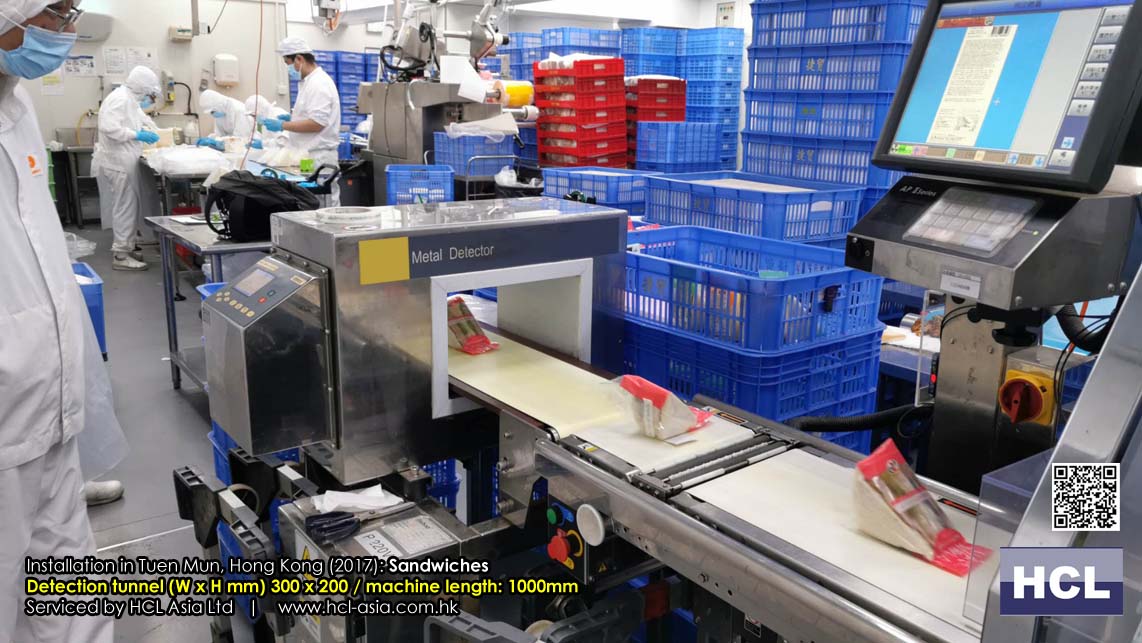

Sandwiches |
 |
 |
 |
 |

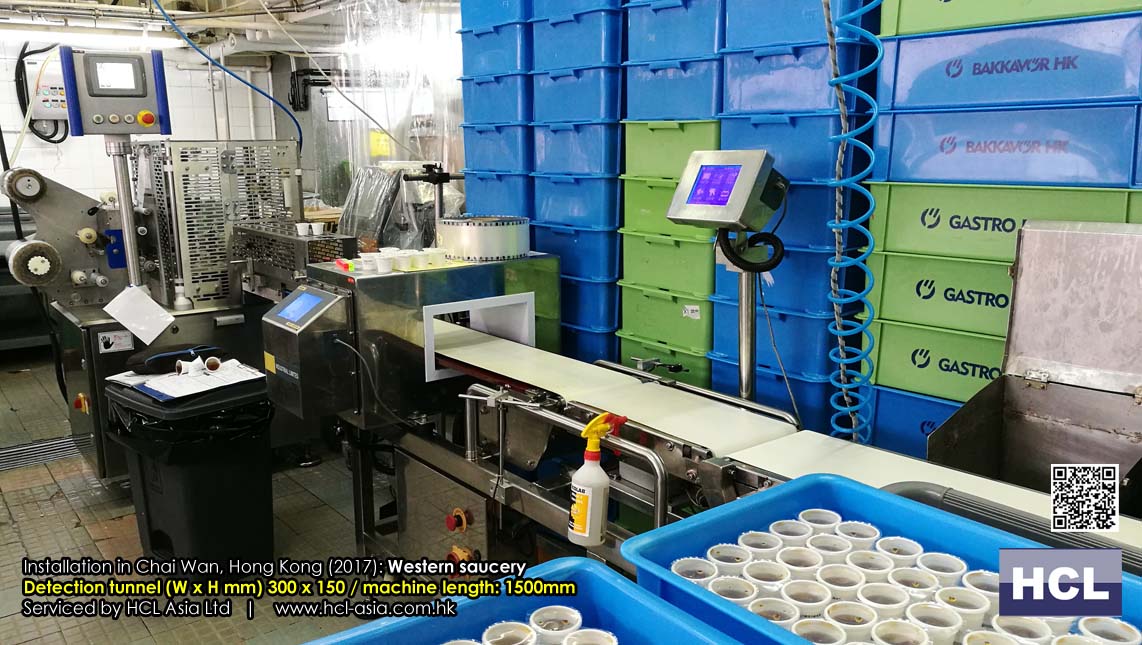

| Western saucery |

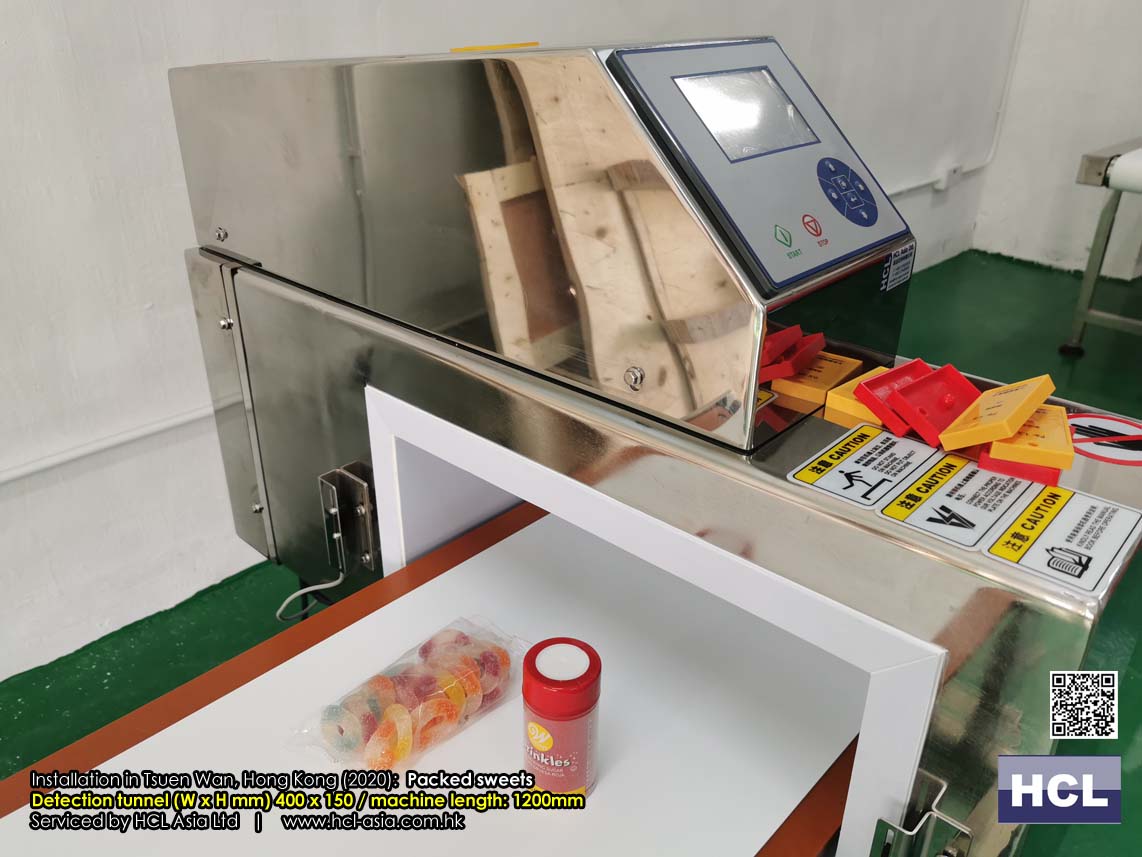

Sweets |

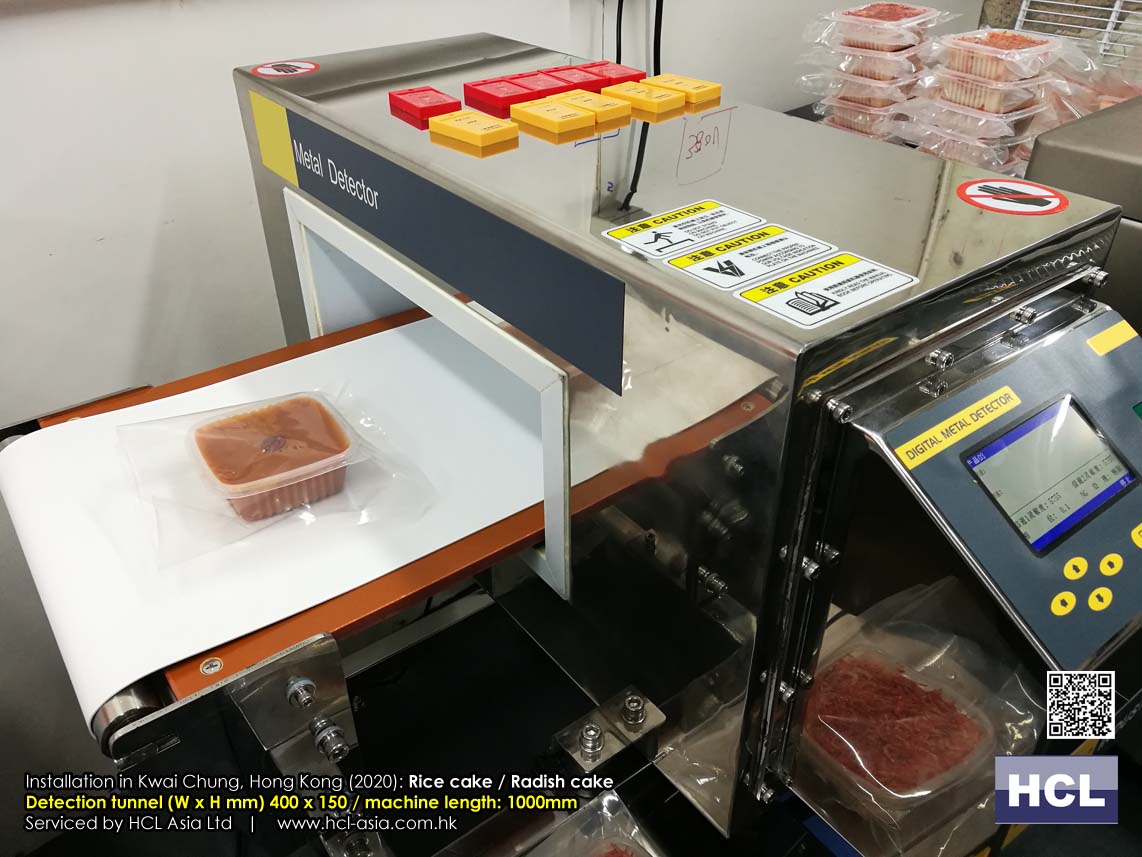

Rice cake / Radish cake |

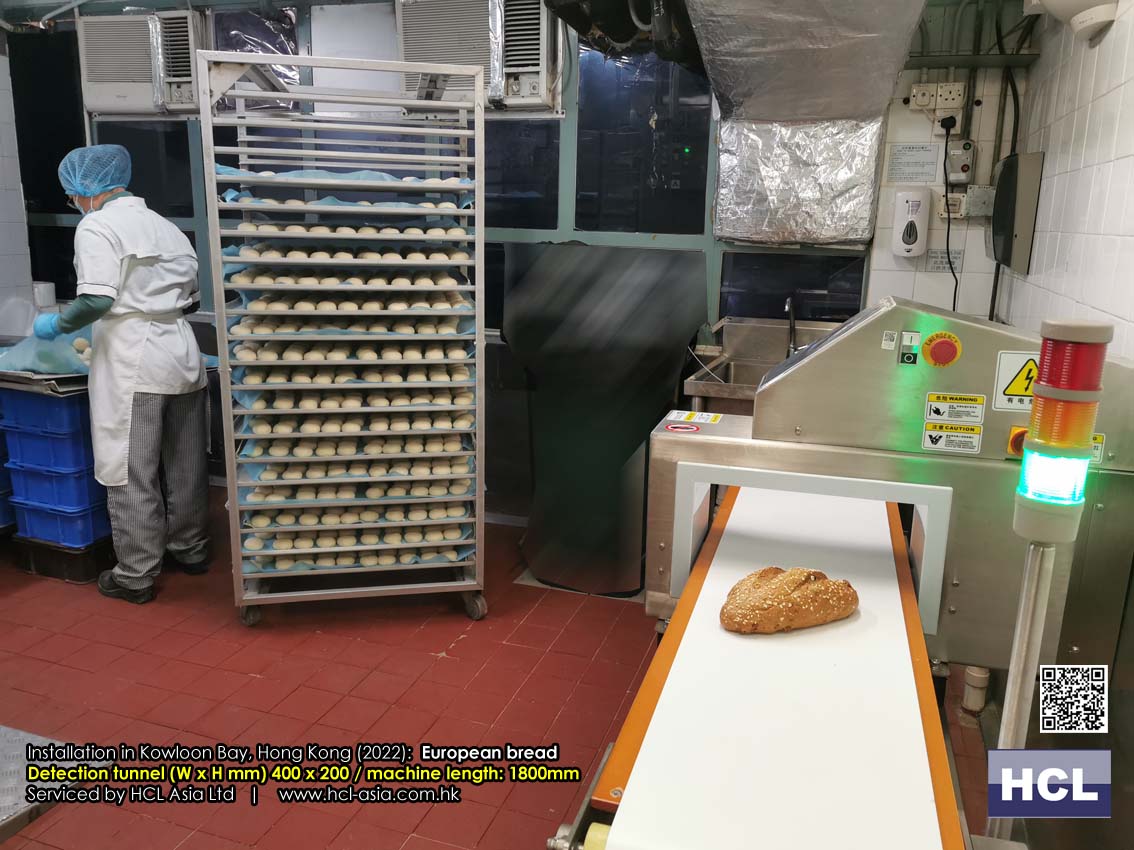

European bread |
 |
 |
 |
 |
| Fermented soybean |

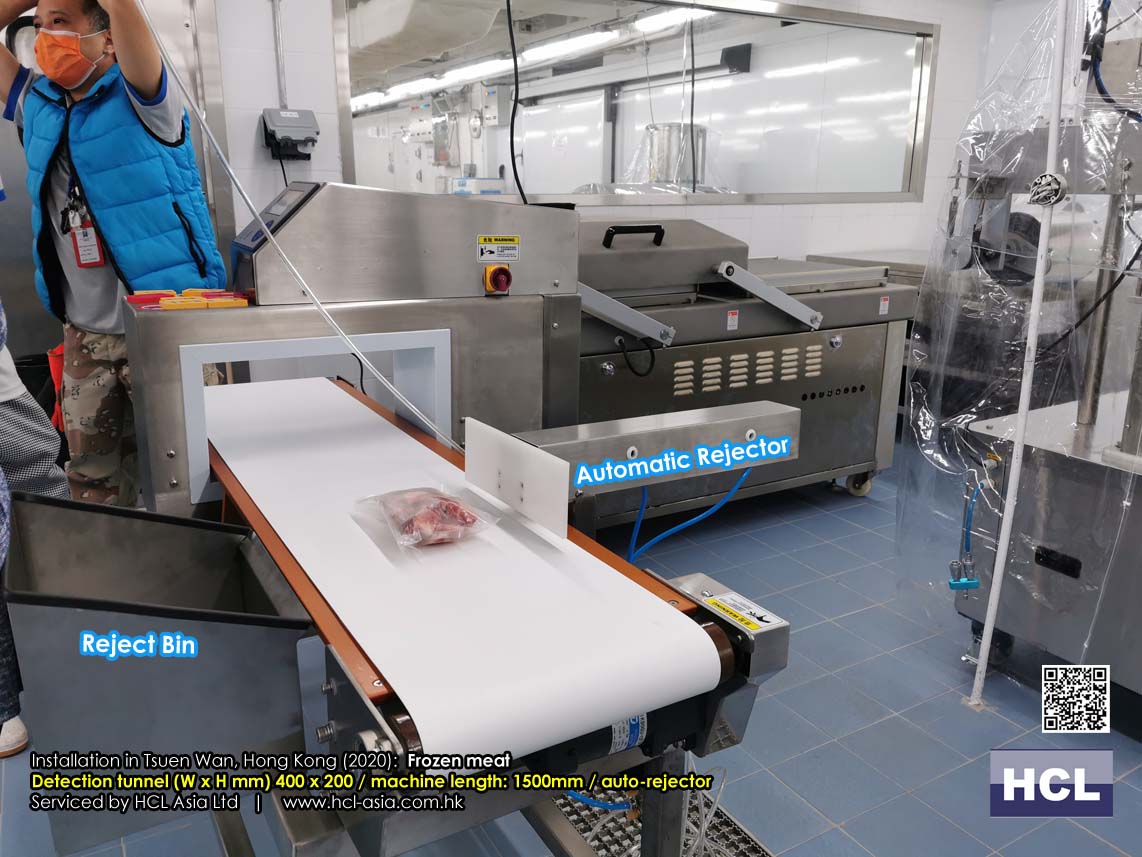

Frozen meat |

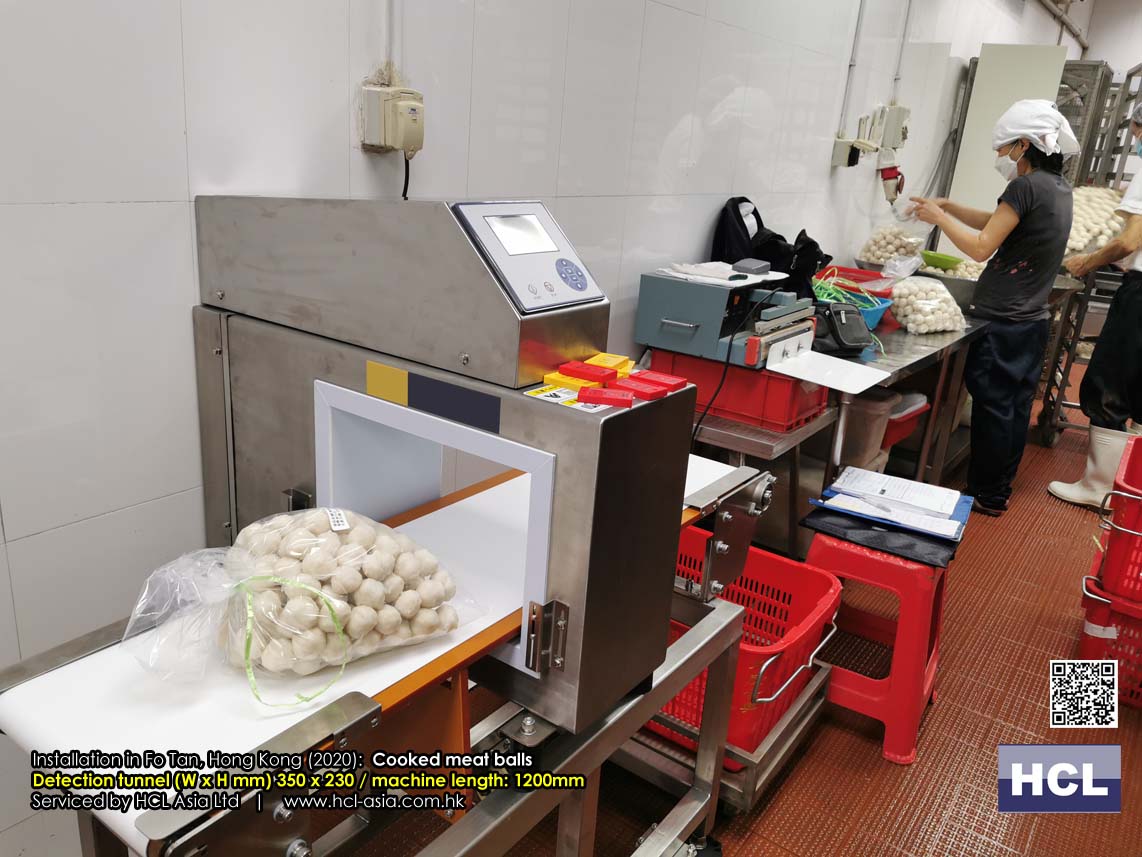

Meal balls |

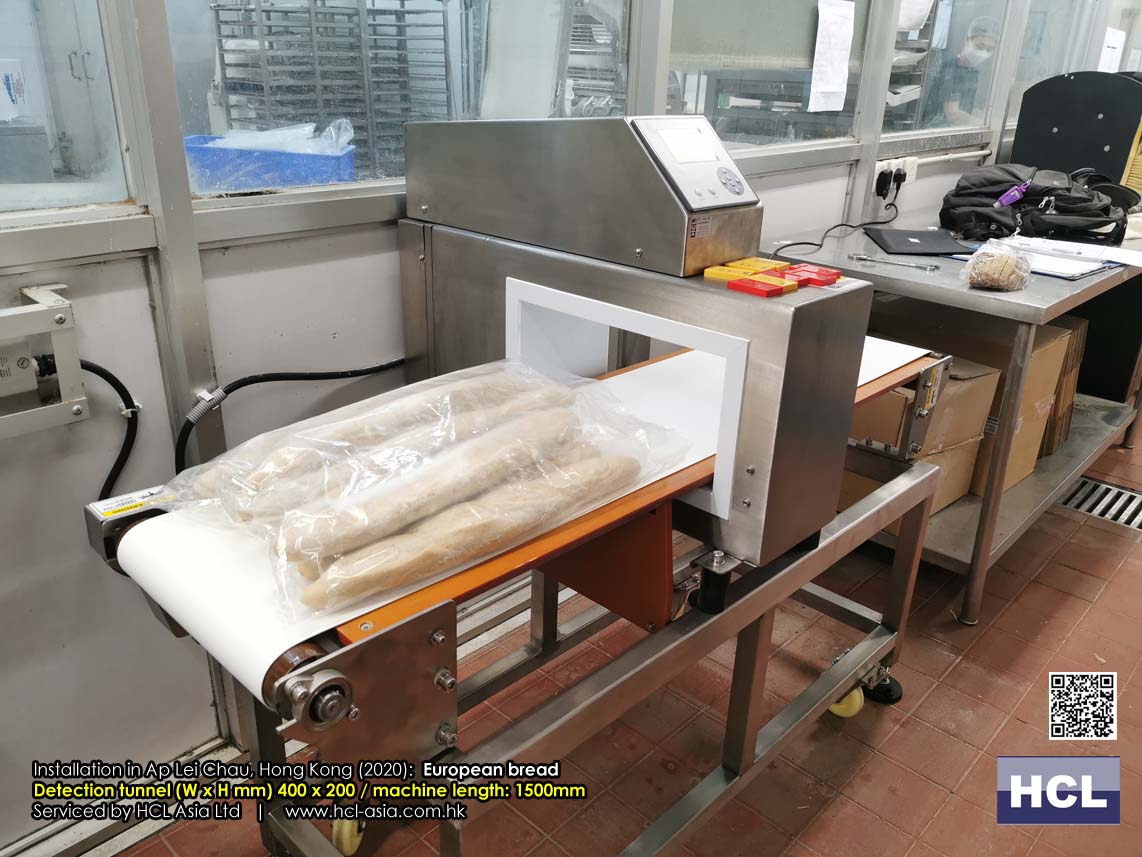

European bread |
