Brand: QMAX (China)

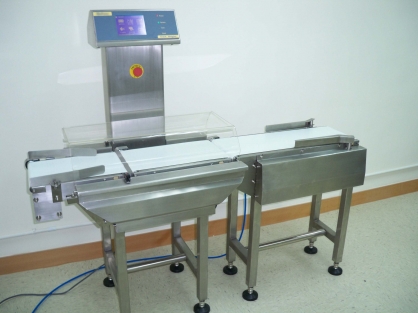

In-line & End-line Check Weighing Systems
Application: Automatic pack weighing and sorting for food industry, chemical industry & pharmaceutical industry
Features:
- LCD with touch-screen, easy to operate
- Multi-functional OS and dual language
- DSP technology and digital signal filter
- Memory and logs
- HBM load cell
- New designed frame
Reject device available:
- Air jet
- Flipper type
- Falling drop
Specifications:

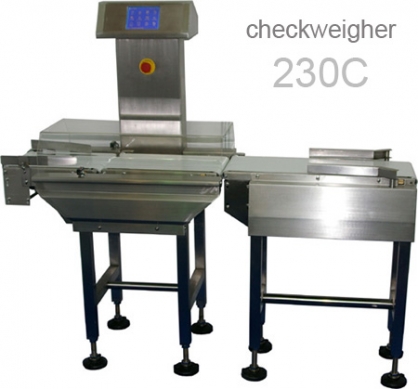

- Model: 230C
- Speed: 31-65m/min
- Belt width: 230mm
- Alarm: Buzzer and Lamp
- Rejection: air/pusher/stick
- Power: AC 110V/220V 50-60Hz
- Rated output: 200W
- Dimension: 1468mm L x 558mm W x 1285 m H
- Machine weight: 100kg
Sensitivity
|
Pack weight (g)
|
Speed
|
Accuracy
|
|
10-99g
|
70 packs / min
|
+/- 0.5g
|
|
100-199g
|
60 packs / min
|
+/- 0.5g
|
|
200-399g
|
50 packs / min
|
+/- 0.5g
|
|
400-999g
|
45 packs / min
|
+/- 1.0g
|
|
|
|
|
|
|
