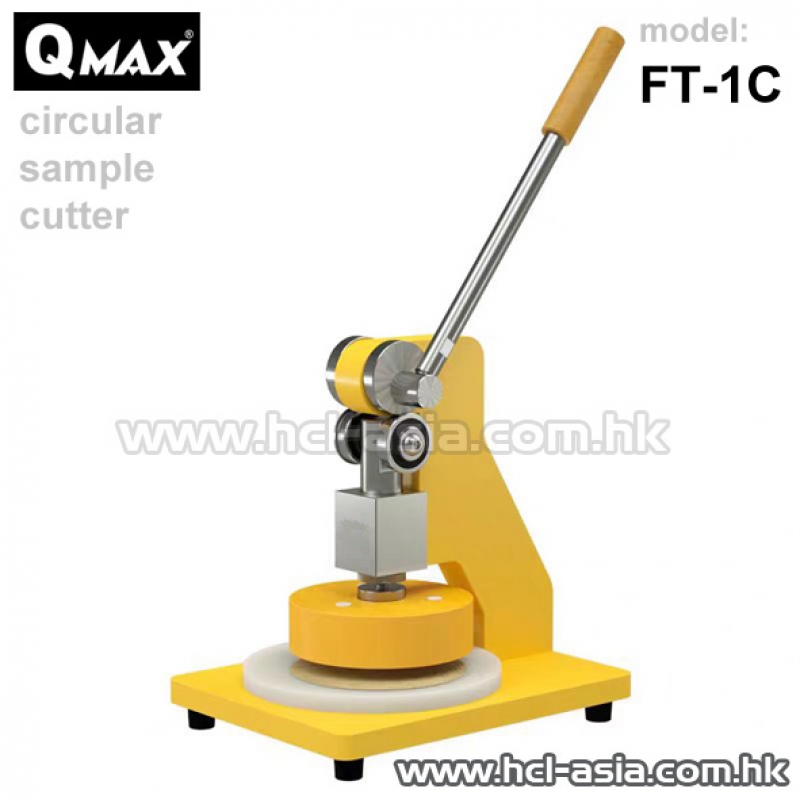

Die-Cut GSM cutter (= Fabric sample cutter)
Brand: QMAX
Model: FT-1C
FT-1C GSM cutter or circular fabric sample cutter is newly launched in 2025 with stylish design available in three colors.
To cut precise, circular fabric samples for measuring the Gram per Square Meter (GSM) of fabrics. It cleanly cuts a perfect circle (usually 100cm2 or a different known area) from the fabric. It determines “per unit area” of textile knitting or woven fabric and calculate the material costs and helps manufacturers maintain uniform fabric density.
GSM cutter is specifically designed to cut out a precise circular 100cm2 specimen for determining fabric weight, also suitable for PVC, paper, leather, etc.
Standard Reference:
ISO 3801, ASTM D3776, BS 2471 (standard test methods for fabric weight measurement)
Specifications:
- Cutting area: 100cm2
- Cutting thickness: 0.1mm-6mm
- Machine size (L*W*H): 235 * 180 * 240mm
- Cutting die: diameter 112.8mm (circle area = 100 cm2) *(cutting area 50 cm2 available on request)

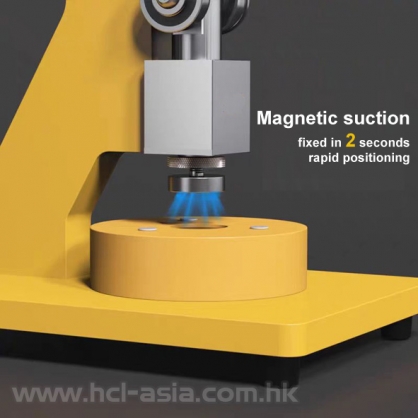

- Easy installation of cutting die by magnetic suction

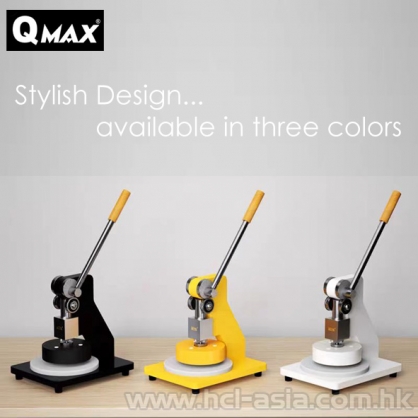

- Available in three colors: black, white and yellow (by default)

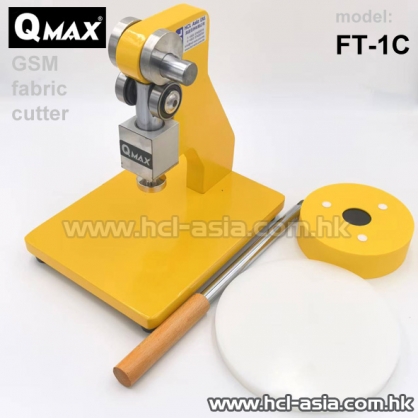

- Package including: 1x cutting die (112.8mm dia.), 1x cutting pad (170mm dia. & 15mm thick) and 1x vise clamp (7 inch)
- Packing size: 290*240*310 mm
- Gross weight: 13KG
- H.S. code: 8205 5110
