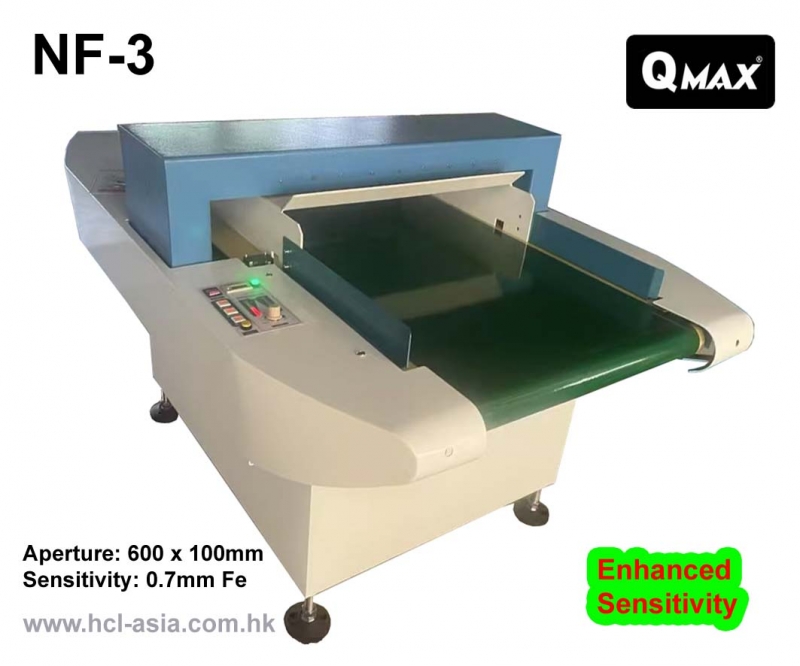

NF-3 is a newly launched model in 2022. This detector has an enhanced sensitivity in regard to the conventional needle detector in the marketplace. 0.7mm ferrous sphere can be detected with an aperture height of 100mm. The aperture is now bigger but the sensitivity remains high. This detector is ideal for clothing industries meeting all leading world-class retailers' requirement.
FEATURES:
- Cycled, 9 pairs of sensor, excellent anti-disturbance performance

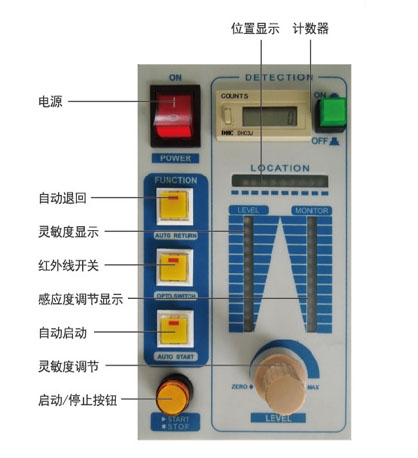

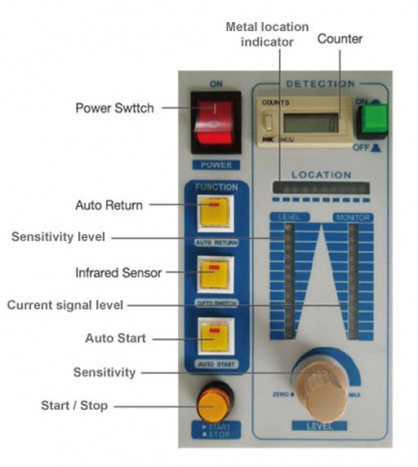

- Based on LED bar displayed control panel
- Hi accuracy detection locating technology, LED indication
- Level setup indication and real-time sensitivity display
- Optional conveying mode after alarm is triggered
- Optional automatic conveyor restart
- Reliability mechanical frame design, highly stable during detection
- Designed for universal AC power supply, switching power supply
SPECIFICATIONS:
- Model： NF-3
- Detection method： Magnetic induction
- Detection sensitivity： ø 0.7mm Fe (center of aperture)
- Sensitivity adjustment： 10 steps
- Detection Height: 100mm (standard)
- Detection Width： 600mm
- Alarm method： Buzzer、Lamp
- Belt speed： 32m/min
- Power source： AC 220V / 50 Hz
- Rated output： 140W
- Dimension： 1650mm(L) x 1050mm(W) x 900mm(H)
- Net Weight： 220Kg
SERIES:
Detection Height Detection Sensitivity
100mm ø 0.7mm Fe (Standard)
120mm ø 0.8mm Fe
140mm ø 1.0mm Fe
180mm ø 1.2mm Fe
