Brand: SCHMIDT (Germany  )
Model: ZF2 / ZD2
Universal fibre or fine thread tension meters for textiles and wire industries. It is the best selling tension meter worldwide.
Economical mechanical tension meter for checking fibres, threads and fine wires with low tensions up to max. 300 cN
Universal measuring unit with large guide rollers groove Ø 12.5 mm
- The analog display shows changing and fluctuating tensions fast and enables an optimal process adjustment
- Filament guide and roller shifting mechanism ensure easy acquisition of the running material
- Large, easy to read scale (54 mm Ø)
- Ball-bearing mounted, V-grooved guide rollers
- Each instrument is individually calibrated for highest accuracy
- Tension meter with high-strength plastic housing
- Certificate of Compliance with the order 2.1 according EN 10204 is included
- Optionally available: Inspection Certificate 3.1 according EN 10204 with calibration report
- Carrying case dimensions (mm): 255 x 210 x 58 (L x W x H)
- Meter dimensions (mm): 157 x 85 x 32 (L x W x H)
- Weight: 200 g N.W. / 600 g G.W.

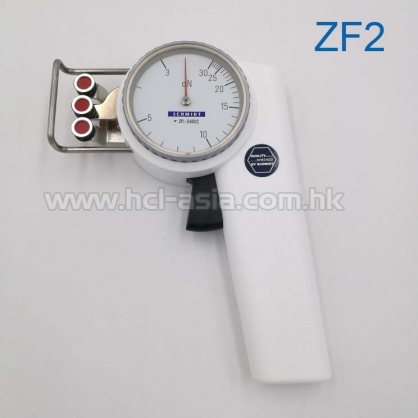

Available ZF2 models: (* Most popular tension meter in the textile industry with small rollers)
| Model |
Measuring range cN |
Measuring Head Width mm |
| ZF2-5 |
1 - 5 |
43 |
| ZF2-10 |
1 - 10 |
43 |
| ZF2-12 |
1 - 12 |
43 |
| ZF2-20 |
2 - 20 |
43 |
| ZF2-30 |
3 - 30 |
43 |
| ZF2-50 |
5 - 50 |
43 |
| ZF2-100 |
10 - 100 |
43 |

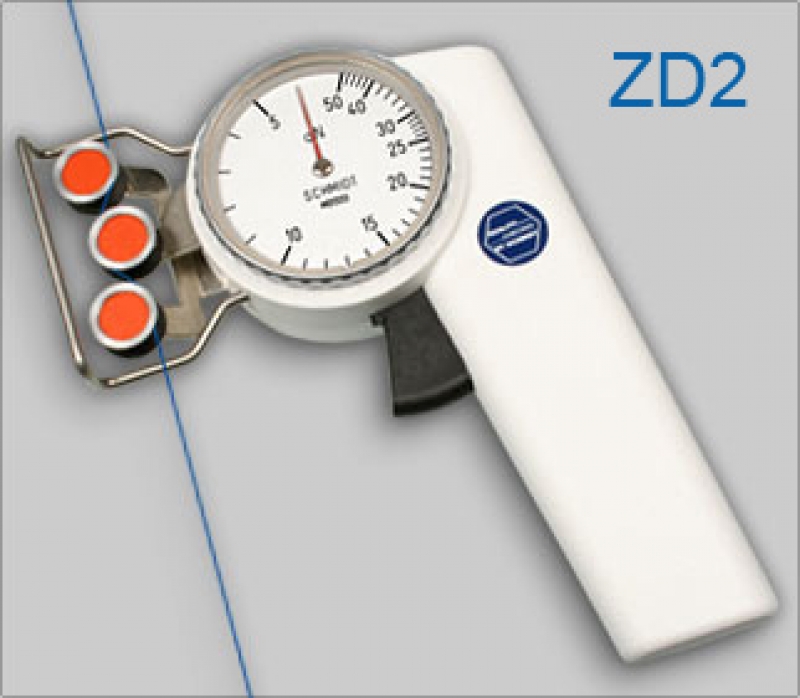

Available ZD2 models: (* Universal tension meter for a variety of applications in the textile and wire industry)
| Model |
Measuring range cN |
Measuring Head Width mm |
| ZD2-30 |
3 - 30 |
63 |
| ZD2-50 |
5 - 50 |
63 |
| ZD2-100 |
10 - 100 |
63 |
| ZD2-150 |
20 - 150 |
63 |
| ZD2-200 |
20 - 200 |
63 |
| ZD2-300 |
20 - 300 |
63 |

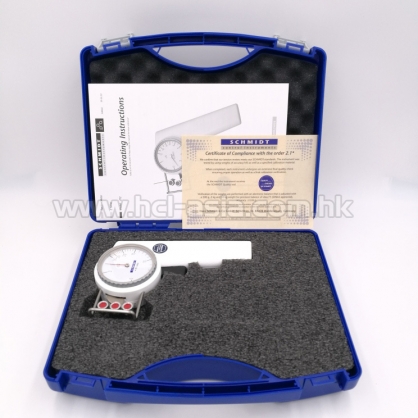

Standard package includes:
- instrument with carrying case
- 1x standard V-grooved guide roller (max. speed: 2000m/min)
- 1x Operating manual
