Brand: SCHMIDT (Germany  )
Model: TEM-I (Aqua-Boy)
For determination the residual moisture content of yarn bobbins, fabric rolls, filament, fibre flock, etc.
This Aqua-Boy Moisture Meter allows the moisture content of textiles to be supervised and measured. The distribution of moisture is never uniform but varies both over the entire surface and also inside the material.
- Easy to use for many applications
- Multiple scale for direct readings for wool, rayon and cotton, and 0-100 centesimal scale (not equivalent to moisture %) for comparison tables used for other materials
- Portable, battery operated (1x 9V)
Standard (TEM-ST01) package details:
- 1x instrument with carrying case (TEM)
- 1x measuring cable (200)
- 1x electrode holder (204)
- 1x 205 needle electrode: for yarns in cops, cross-wound bobbins and hanks (needle length 25mm)
- 1x 207 needle electrode: same as 205 but with needle length 100mm
- 1x 213 surface electrode: for fabrics and garments (surface 23mm Ø)
- 1x Operating manual with comparison tables
- 1x 9V battery (see battery image)
Packing size: 30 x 20 x 8 cm Gross weight: 2 kg
# Click below brand logos to view its packages:
Optional item: Calibration Electrode (50299M) / (299) using a fixed calibration value (i.e. 70 centesimal scale ) to check the accuracy of the display at one test point. The probe is connected to the display which has to show the factory set preset value. The electrode is supplied with a calibration certificate.
** Please consult with us for on-demand calibration service.
Video demo of
 Calibration Electrode (299) |  Calibration Electrode (299) (view in China)

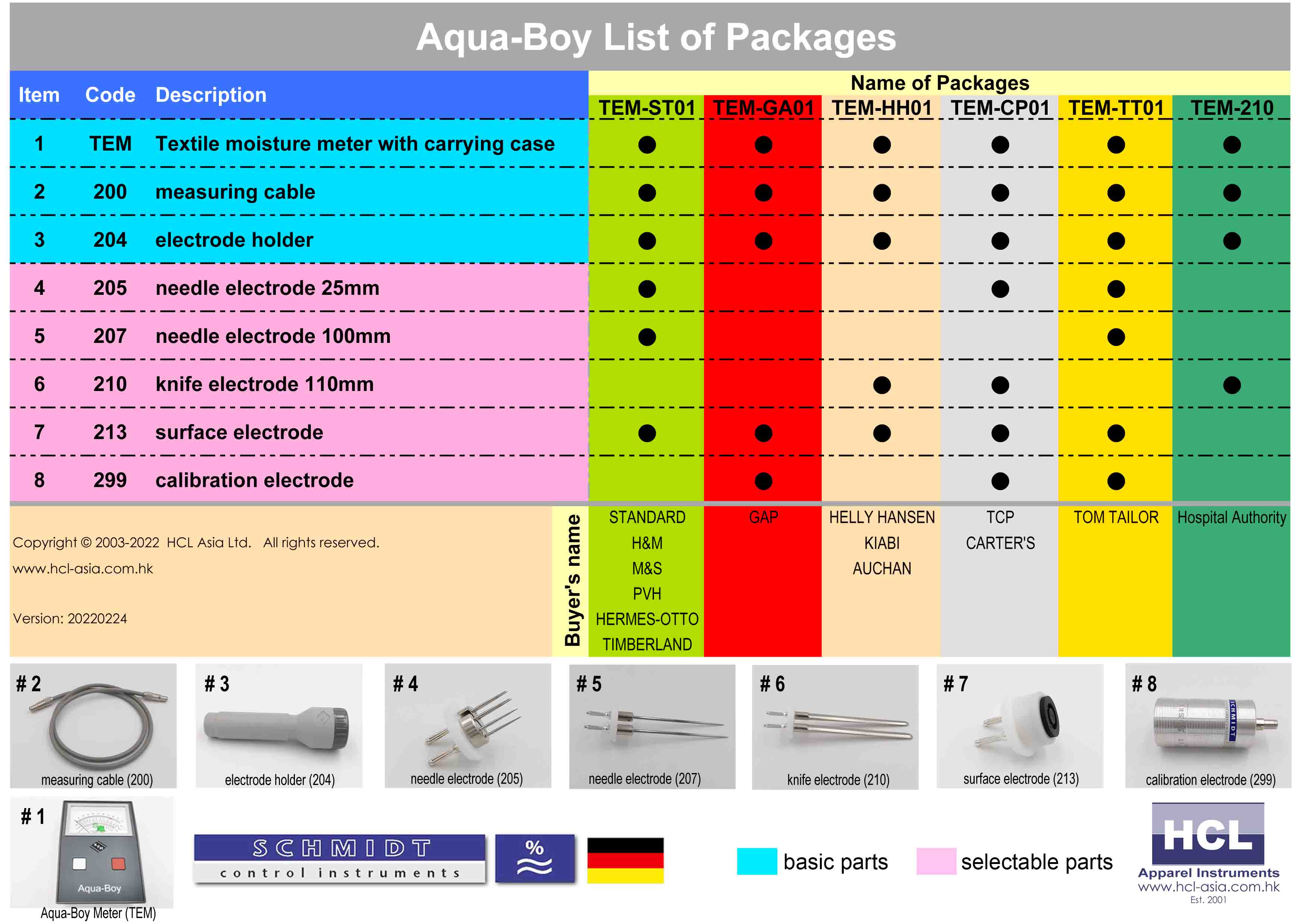

| List of Packages: |
